JMP Marine

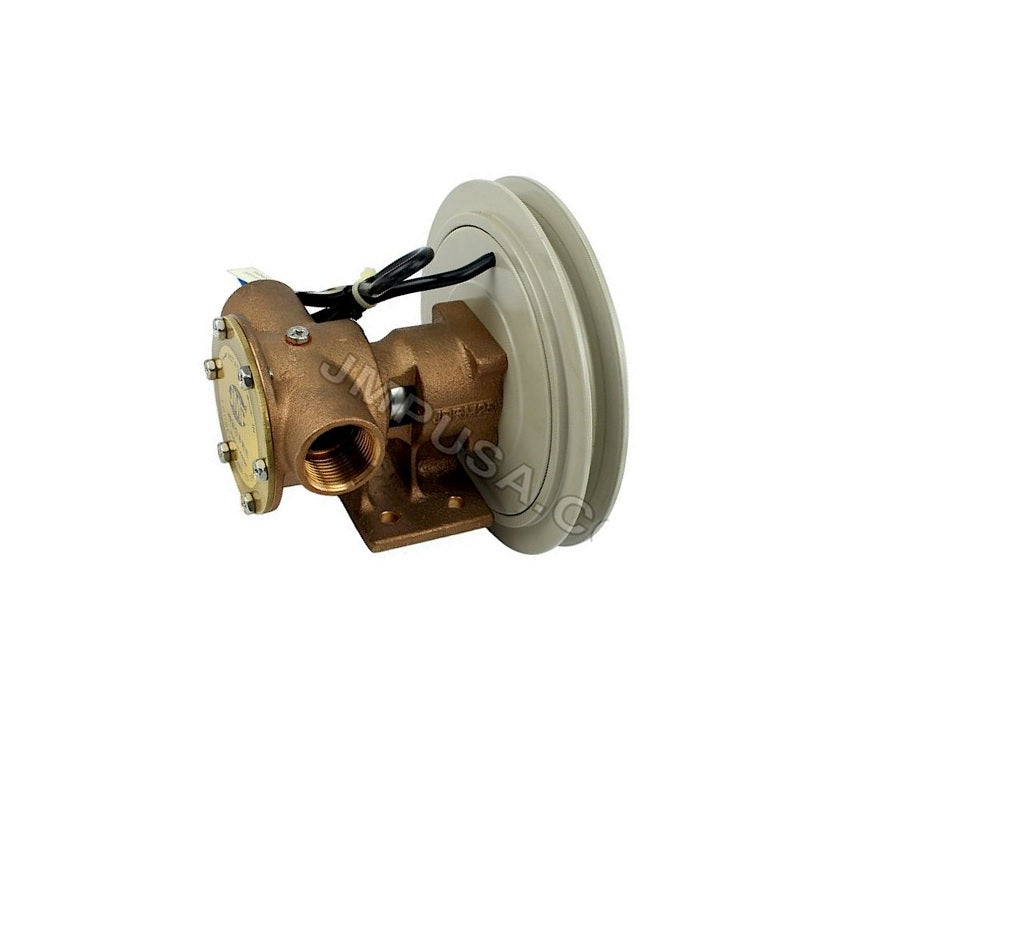

12V Clutch Pump (Electro Magnetic) 1" NPT - 106 l/min Double A Pulley JPR-M25IP
12V Clutch Pump (Electro Magnetic) 1" NPT - 106 l/min Double A Pulley JPR-M25IP
Regular price
$1,210.00 AUD
Regular price
Sale price
$1,210.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
JMP Electro Magnetic Clutch Pumps are multi-purpose pumps widely used in agricultural, industrial and especially marine applications. For marine, it can be used in high capacity bilge or deckwash and emergency fire fighting pumps.
12 V Electro Magnetic Clutch with 1" NPT Pipe Ports and 2 Groove A Section Belt Pulley.
Flow rate = 106 l/min
*Pulley = Double A Section (image of pulley us single)
This is a JMP Marine pump JPR-M25IP12V2A
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1" Pipe | 1" Pipe | 180 x 178 x 178 | 8kg |
Pump Parts:
|
JMP |
OEM | Desription | Qty | Notes |
|---|---|---|---|---|
| 7400-01 | Impeller | 1 | ||
| JSM0008 | Minor Kit | 1 | ||
| JSK0050 | Major Kit | 1 | ||
| BER0001 | Bearing Drive | 1 | ||
| BER0001 | Bearing Seal | 1 | ||
| BOL0080 | Screw | |||
| CAMSET000301 | Camset | 1 | ||
| COV000301 | End Cover | 1 | ||
| ORG0013 | Cover Gasket | 1 | ||
| KEY0003 | Key | 1 | ||
| MCSSET0008 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| RET0021 | Retainer Seal | 1 | ||
| SHA0055 | Shaft | 1 | ||
| N/A | Slinger | 1 | ||
| N/A | Snap Ring Seal | 1 | ||
| N/A | Snap Ring Drive | 1 | ||
| WER0001 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
