Cummins QSC 8.3, QSL 9.0 Sherwood G2610X (G2603) Seawater Pump Replacement C0830
Cummins QSC 8.3, QSL 9.0 Sherwood G2610X (G2603) Seawater Pump Replacement C0830
Regular price
$2,750.00 AUD
Regular price
Sale price
$2,750.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cummins QSC 8.3, QSL 9.0 Sherwood G2610 Seawater Pump Replacement
Seawater pump replaces Cummins 3967246 , 4937162 , 4937275 on Cummins QSC8.3, QSL9.0.
Seawater pump replaces Sherwood G2610X, G2601, G2601-02, Sherwood G2603.
Includes mounting oring.
** NOTE: There is a smaller version pump sometimes used on this engine - JMP JPR-S7630.
Parts compatible with original.
This is a JMP Marine seawater pump part JMP JPR-C0830.

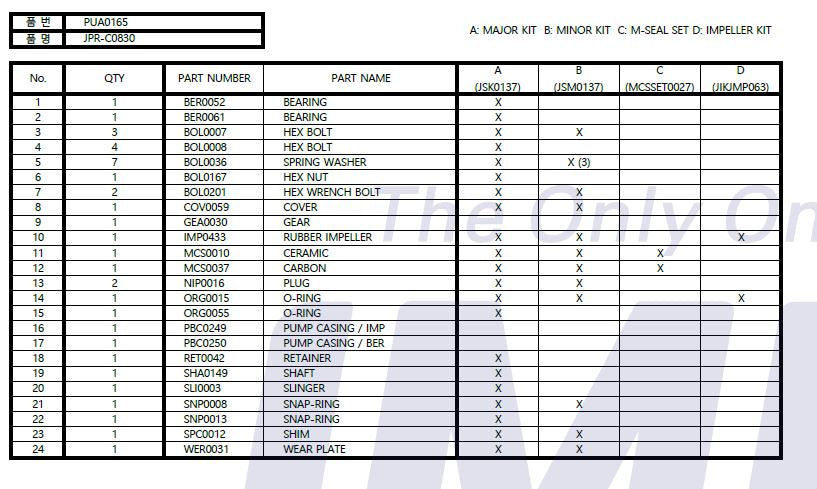

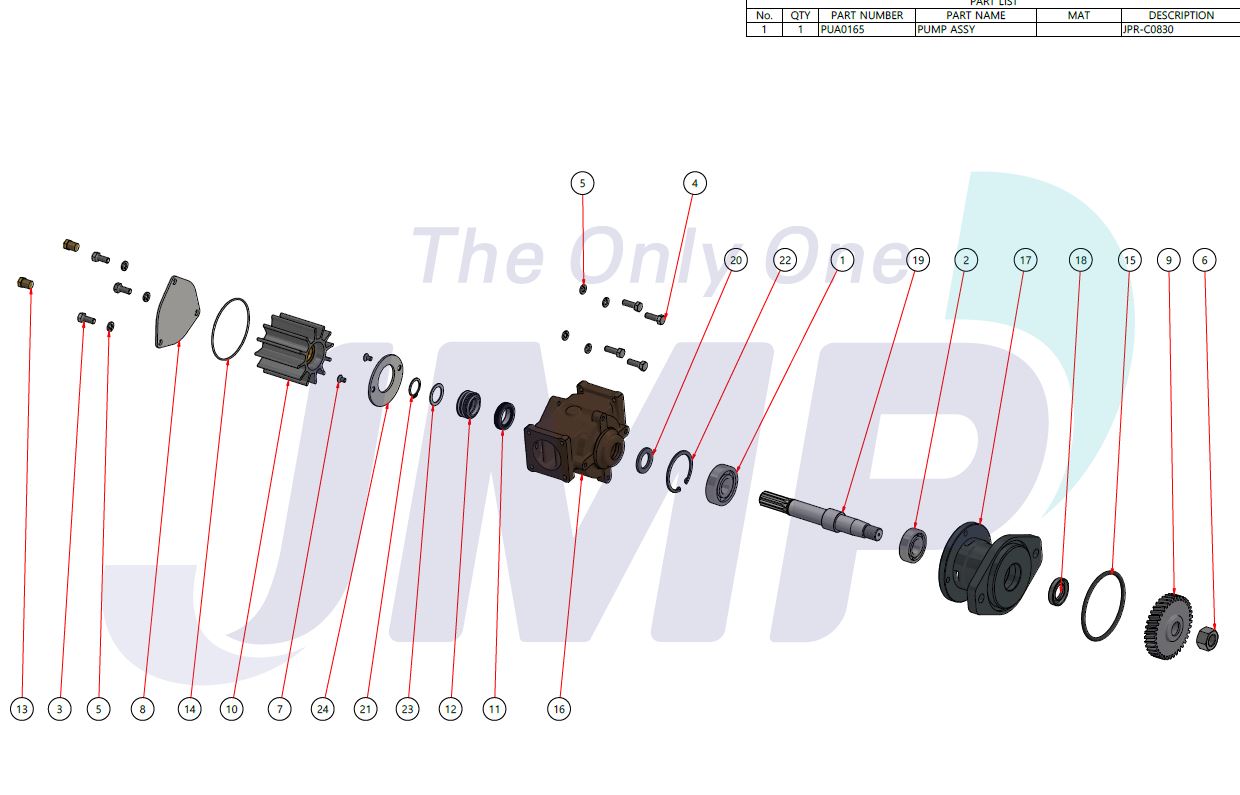

Pump Parts:
| JMP | DESCRIPTION | QTY | CUMMINS | SHERWOOD |
|---|---|---|---|---|
| JPR-C0830 | SEA WATER PUMP | 1 | 3967246 | G2601 |
| JSK0137 | KIT - MAJOR | |||
| JSM0137 | KIT- MINOR | |||
| 8159-01 | IMPELLER | 1 | 3972366 | 26000K |
| WER0031 | WEAR PLATE | 1 | 24790 | |
| COV0059 | END COVER | 1 | 24074 | |
| ORG0015 | O-RING, END COVER | 1 | 19879 | |
| BOL0007 | HEX BOLT, END COVER | 3 | ||
| BOL0036 | SPRING WASHER, END COVER | 6 |
||
| MCSSET0027 | MECHANICAL SEAL SET | 1 | 23837 | |
| SHA0149 | SHAFT | 1 | SHAFT / BEARING ASSY | 24223 |
| BER0052 | BALL BEARING | 1 | ||
| BER0061 | BALL BEARING | 1 | ||
| RET0042 | LIP SEAL, OIL | 1 | 25268 | |
| BOL0201 | SET SCREW, WEAR PLATE | 2 | 24840 | |
| ORG0055 | O-RING, MOUNTING | 1 | ||
| SNP0008 | CIRCLIP (EXT) | 1 | 19762 | |
| SNP0013 | CIRCLIP (INT) | 1 | 19867 | |
| SPC0012 | SPACER | 1 | ||
| GEA0030 | GEAR | 1 | ||
