JMP
Cummins QSM11 Seawater Pump Replacement
Cummins QSM11 Seawater Pump Replacement
Regular price
$3,080.00 AUD
Regular price
Sale price
$3,080.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cummins QSM11 Seawater Pump Replacement
Seawater pump suits Cummins QSM 11 Engines.
Replaces Cummins raw water pumps 4929178, 3349392, 5260393.
Sherwood G2903X, G-2903X - 29000K Impeller type (replacing G1810X, G1810-01- 18000K impeller).
Part numbers 23523 RC, 23396
This is a JMP Marine Pump part JPR-C1100. ( SHW 29000 impeller type)

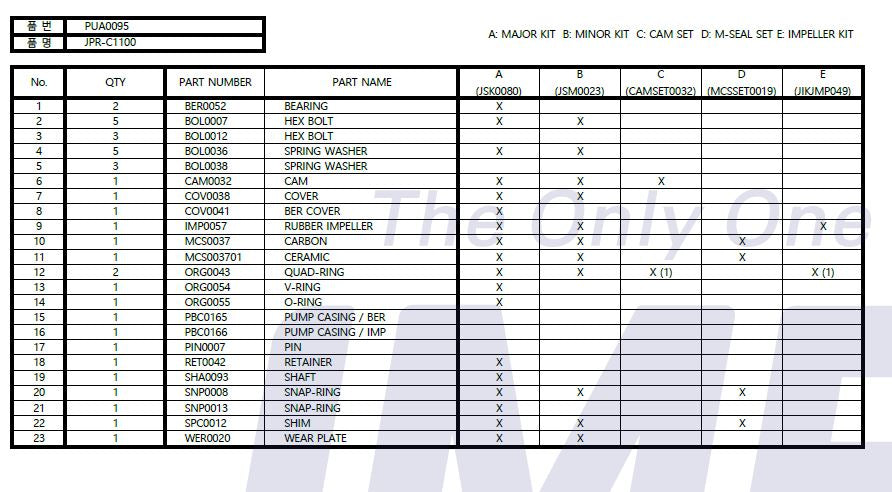

Pump Parts: - Compatible with Original 29000 sieries pump
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1100 | SEA WATER PUMP | 1 | 4929178 |
| BER0052 | BALL BEARING | 2 | 4019426 |
| BOL0007 | HEX BOLT, END COVER | 5 | |
| BOL0036 | SPRING WASHER, END COVER | 5 | |
| CAMSET0032 | CAM LINER (1piece) | 1 | 4019415 |
| COV0038 | END COVER | 1 | 4019409 |
| COV0041 | BEARING SHIELD | 1 | 4919425 |
| 8359-01 | IMPELLER | 1 | 4933742 |
| MCSSET0019 | MECHANICAL SEAL KIT | 1 | 4019427 |
| ORG0054 | V-RING | 1 | 4019412 |
| ORG0043 | QUAD RING (with CAM LINER) | 2 | 4019416 |
| ORG0055 | O-RING, MOUNTING ADAPTOR | 1 | 4019428 |
| PIN0007 | PIN, CAM LINER | 1 | 4019417 |
| RET0042 | OIL SEAL | 1 | 4019413 |
| SHA0093 | SHAFT | 1 | 4019419 |
| SNP0008 | SNAP RING | 1 | 4019407 |
| SNP0013 | SNAP RING | 1 | 4019411 |
| SPC0012 | SPACER | 1 | 4019410 |
| WER0020 | WEAR PLATE | 1 | 4019408 |
| JSM0023 | MINOR KIT | 1 | 4930628 |
| JSK0080 | MAJOR KIT | 1 | 4930629 |
