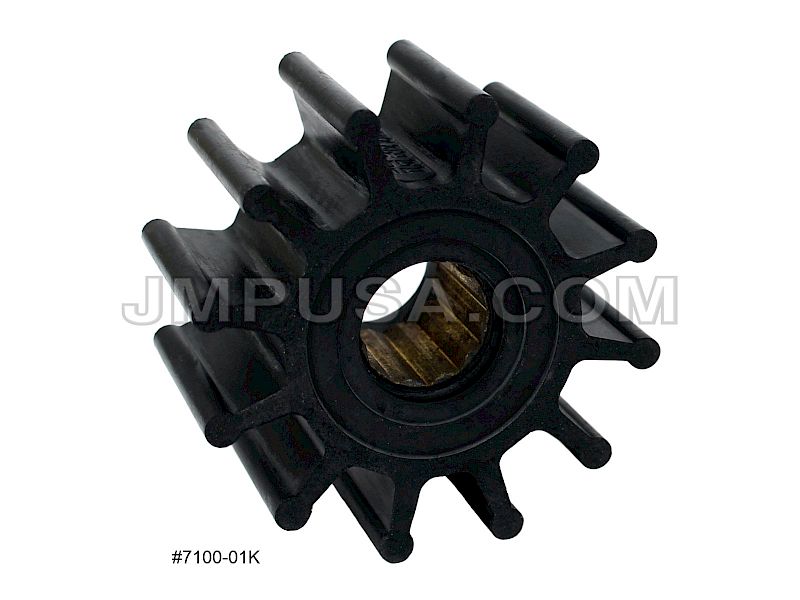

JMP 7100-01 Impeller (Johnson 09-1027B, Jabsco 1210-0001)

JMP Marine Flexible Impeller Kit #7100-01K

Kit Includes:
7100-01 (Impeller) QTY:1
GAK0060 (Gasket) QTY:1
GAK0055 (Gasket) QTY:1
ORG0013 (O-Ring) QTY:1
ORG0045 (O-Ring) QTY:1
ORG0046 (O-Ring) QTY:1
ORG0061 (O-Ring) QTY:1
Lubricant

Replacement / Equivalent To:
Caterpillar 232-3198
CEF 500107
Detroit Diesel 5194205
Jabsco 1210-0001, 1210-0001-P
Johnson 08-1027B, 09-1027B
Ancor 2040, J050407
Onan 131-0050, 132-0162
Northern Lights 12-12060, 25-12060
Perkins 0460038, 24880190
Sierra 18-3081
Vetus IMP00201
Volvo Penta 825940, 829940, 860203, 875811, 8758112, 876243, 877400, 925940, 3858256, 3856039, 3856039-7, 3855546, 3862567, 3862465, 21951346
Westerbeke 302571
Yanmar 129470-42530, 129470-42531, 129470-42532, 129670-42530, 129670-42531
Nikkiso F15CBC
Kashiyama KP-30

JMP Marine Pump(s) Using This Impeller:
JPR-CT0150 (Caterpillar Lights Replacement)
JPR-NL10IP (Northern Lights Replacement)
JPR-NL10IP2 (Northern Lights Replacement)
JPR-VP0020D (Volvo Penta Replacement)
JPR-YM04JHA (Yanmar Replacement)
JPR-YM04JHB (Yanmar Replacement)

Impeller Dimensions & Specs:
A (Impeller Dia) 57mm
B (Impeller Width) 31.50mm
C (Shaft Dia) 16mm
No. of Blades: 12
Shaft Type: Spline Drive(12)
