JMP Marine

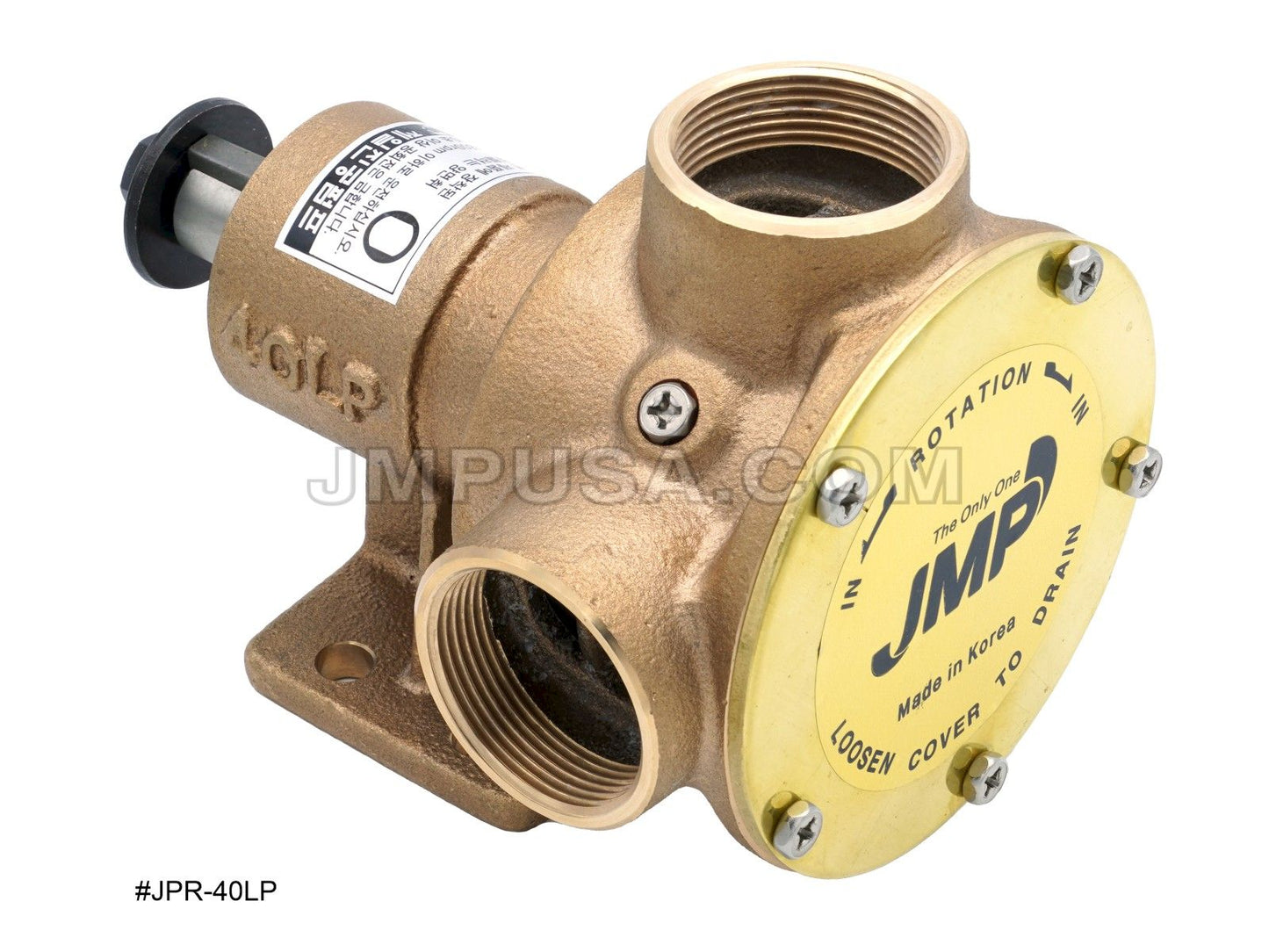

Pedestal Multi-Purpose Pump 1-1/2" JPR-40LP
Pedestal Multi-Purpose Pump 1-1/2" JPR-40LP
Regular price
Contact for Price
Regular price
Sale price
Contact for Price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
General Multi-Purpose Pump
Flow rate & 1800rpm = 268 l/min.
Stainless Steel Shaft (22mm) & Mechanical Seal. Bronze Body.
This is a JMP Marine Pump JPR-40LP
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1-1/2" NPT | 1-1/2" NPT | 186 x 133 x 148 | 4.8kg |
Pump Parts:
| JMP | OEM | Desription | Qty | Notes |
|---|---|---|---|---|
| 8001-01 | Impeller | 1 | ||
| JSM0038 | Minor Kit | 1 | ||
| JSK0006 | Major Kit | 1 | ||
| BER0003 | Bearing Drive | 1 | ||
| BER0003 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET0005 | Camset | 1 | ||
| COV0005 | End Cover | 1 | ||
| ORG0015 | Cover Gasket | 1 | ||
| KEY0005 | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| RET0008 | Retainer Drive | 1 | ||
| N/A | Retainer Seal | 1 | ||
| SHA0006 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| SNP0008 | Snap Ring Seal | 1 | ||
| SNP0011 | Snap Ring Drive | 1 | ||
| WER0003 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
