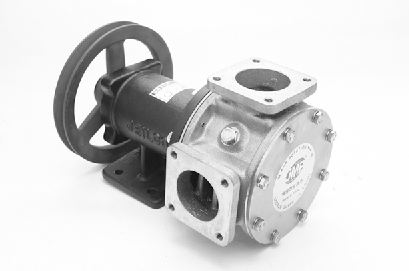

Multi-Purpose Pulley Pump 591 LPM, 2-1/2" ( JPR-65LF)
Multi-Purpose Pulley Pump 591 LPM, 2-1/2" ( JPR-65LF)
Regular price
$2,530.00 AUD
Regular price
Sale price
$2,530.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

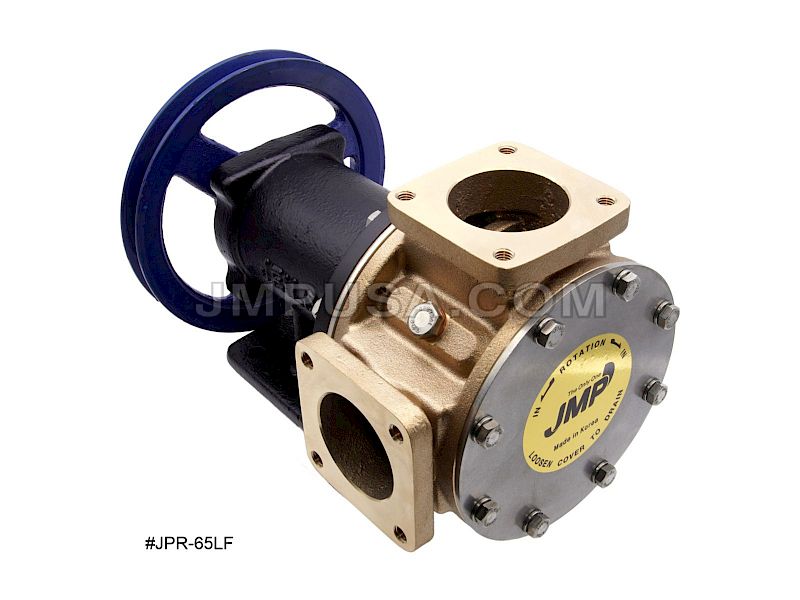

JMP Marine General Purpose Pump JPR-65LF
Applications:
- Marine & Sewage Treatment
- Industrial (ie. Cleaning Solutions, Bottling Systems)
- Agricultural / Farming Public Utilities and Municipalities
Product Features:
- Strong Bronze Body
- Long Life Mechanical Seal
- High Performance and Long Life Flexible Impeller
- Designed with Easy Replacement of Spare Parts
- O-Ring Seals at Endcover (Impeller Cover) Instead of a Gasket
This product is not normally in stock. Please contact to place an order.
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Flow |
|---|---|---|---|---|
| 2-1/2" | 2-1/2" | 315 x 186 x 230 | 20.0 kgs | (1800rpm): 591 Liter/Min |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 9100-01 | Impeller | 1 | ||
| JSM0015 | Minor Kit | 1 | ||
| JSK0015 | Major Kit | 1 | ||
| BER0023 | Bearing Drive | 1 | ||
| BER0023 | Bearing Seal | 1 | ||
| BOL0006 | Screw | |||
| CAMSET0009 | Camset | 1 | ||
| COV0009 | End Cover | 1 | ||
| ORG0012 | Cover Gasket | 1 | ||
| KEY0006 | Key | 1 | ||
| MCSSET0005 | Seal | 1 | ||
| COV0026 | Retainer Drive | 1 | ||
| N/A | Retainer Seal | 1 | ||
| SHA0014 | Shaft | 1 | ||
| SLI0004 | Slinger | 1 | ||
| SNP0019 | Snap Ring Seal | 1 | ||
| SNP0016 | Snap Ring Drive | 1 | ||
| WER0005 | Wear Plate | 1 | ||
| Clutch / Drive |
