JMP
Regular price
$7,150.00 AUD
Regular price
Sale price
$7,150.00 AUD
Unit price
/
per
Couldn't load pickup availability
Raw water pump for Cummins KTA19 & QSK19 marine engines.
Replaces Cummins Seawater Pump 3866609. / Jabsco 18770-003
For Gilkes style pump, see Cummins 3049158 JMP C1900.
This is a non-OEM, aftermarket part JMP JPR-C1905.

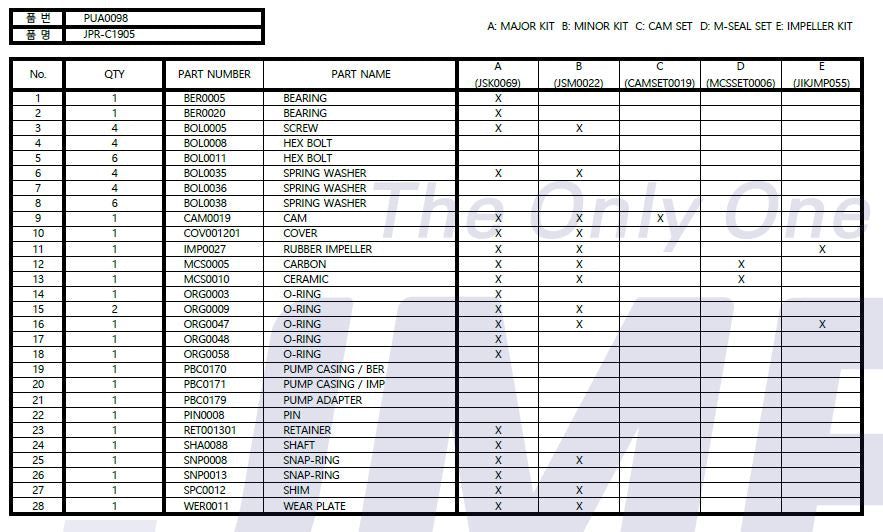

Pumps Parts:
| JMP |
DESCRIPTION |
QTY |
REMARK |
| JPR-C1905 |
SEA WATER PUMP |
|
|
| BER0005 |
BALL BEARING |
1 |
|
| BER0020 |
BALL BEARING |
1 |
|
| BOL0005 |
HEX BOLT, END COVER |
4 |
|
| BOL0035 |
SPRING WASHER. END COVER |
4 |
|
| CAMSET0019 |
CAM LINER - ALUMINUM BRONZE |
1 |
CUMMINS - PLASTIC |
| COV001201 |
END COVER |
1 |
|
| 9001-01 |
IMPELLER |
1 |
|
| MCSSET0006 |
MECHANICAL SEAL SET |
1 |
|
| ORG0047 |
O-RING, END COVER |
1 |
|
| ORG0003 |
O-RING |
1 |
|
| ORG0048 |
O-RING, MOUNTING |
1 |
|
| PIN0008 |
DOWEL PIN |
1 |
|
| RET001301 |
OIL SEAL |
1 |
|
| SHA0088 |
SHAFT |
1 |
|
| SNP0008 |
SNAP RING |
1 |
|
| SNP0013 |
SNAP RING |
1 |
|
| SPC0012 |
SPACER |
1 |
|
| WER0011 |
WEAR PLATE |
1 |
|
| GEA0015 |
GEAR |
1 |
|
| JSM0022 |
MINOR KIT |
1 |
|
| JSK0069 |
MAJOR KIT |
1 |
ALL INTERNAL PARTS |
