Caterpillar 3508 Seawater Pump (Gilkes Style) 7C3614 Replacement JMP JPR-CT3508
Caterpillar 3508 Seawater Pump (Gilkes Style) 7C3614 Replacement JMP JPR-CT3508
Regular price
$10,450.00 AUD
Regular price
Sale price
$10,450.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Replacement seawater cooling Pump for CATERPILLAR ENGINES:
3508, 3508B, 3508C, 3512, 3512B, 3516B
Replaces Caterpillar pump 7C3614 / Gilkes pump OR7721 - M Series 250/700. For Gilkes pump OR7720 - see JMP CT-3412
Note: 5N2600 is replaced by 7C3614
Internal parts compatible to genuine. Drive gear not included.
This is a JMP Marine Pump JPR CT-3508. It usually ships 4 weeks from order.

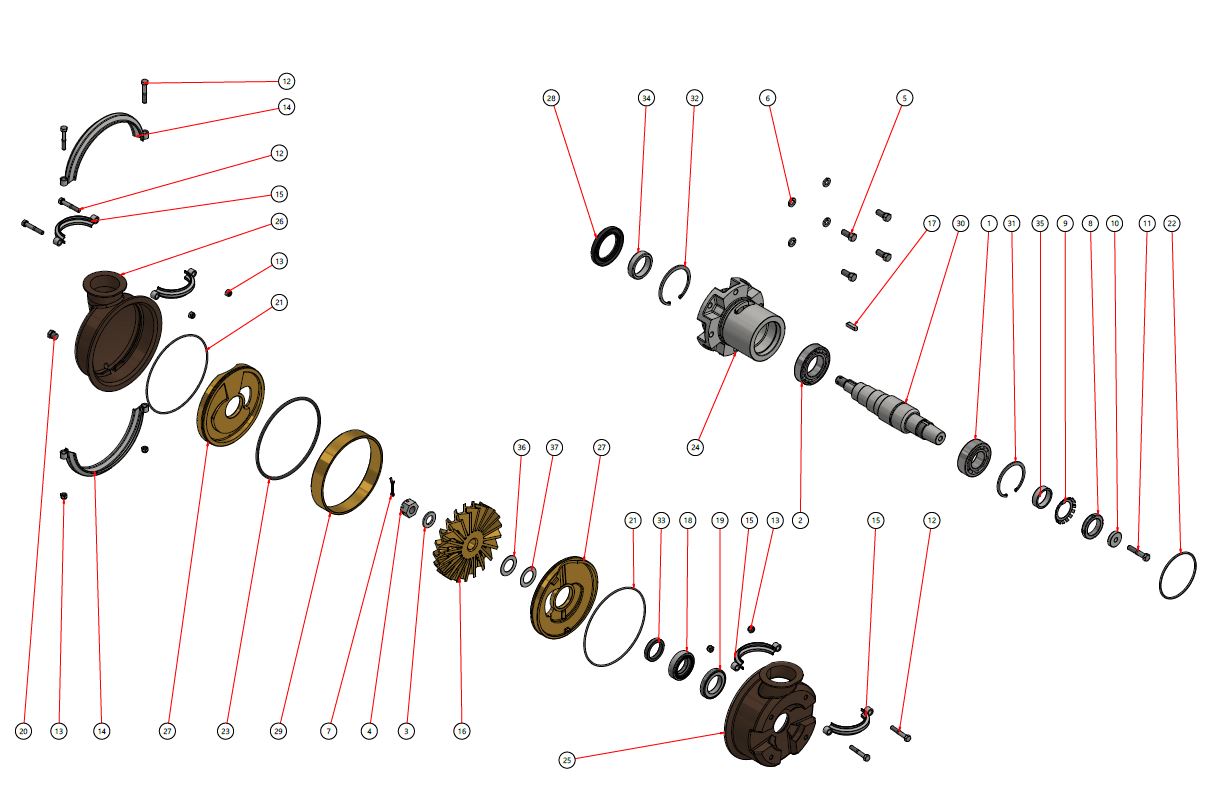

Pump Parts:| JMP | CAT | DESCRIPTION | QTY | REMARK |
|---|---|---|---|---|
| JPR-CT3508 | 7C3614 | SEA WATER PUMP | 1 | |
| BER0037 | 3N8463 | BALL BEARING | 1 | |
| BER0038 | 4M6107 | BALL BEARING | 1 | 4M6107+8T0209 |
| BOL0097 | 4P9312 | COTTER PIN | 1 | |
| BOL0110 | 8B7614 | SLOTTED NUT | 1 | |
| CLP0100 | 3N8469 | CLAMP ASSEMBLY(LARGE) | 1 | |
| CLP0101 | 3N8468 | CLAMP ASSEMBLY(SMALL) | 2 | |
| IMP0063 | 5N2618 | IMPELLER | 1 | |
| KEY0017 | 1756716 | KEY | 1 | |
| MCSSET0009 | 5N6055 | MECHANICAL SEAL SET | 1 | |
| PORT001G | 5N4504 | PORT PLATE | 2 | |
| ORG0023 | N/A | O-RING, PORT PLATE | 2 | |
| ORG0024 | N/A | O-RING | 1 | |
| ORG0029 | 3N8462 | O-RING | 1 | |
| RET0020 | 5N2902 | OIL SEAL | 1 | |
| RIG0001 | 3N8452 | DISTANCE RING | 1 | |
| SHA0048 | 7C3493 | SHAFT | 1 | |
| SNP0016 | 1075565 | SNAP RING | 1 | |
| SNP0018 | IJ6472 | SNAP RING | 1 | |
| SPC0003 | 3N8442 | SPACER | 1 | |
| SPC0005 | 5N2904 | SPACER | 1 | |
| SPC0006 | 3N8445 | SPACER | 1 | |
| JMK0002 | N/A | SEAL KIT | 1 | INCLUDES No.4, 10, 14, 15, 20 |
| JSK0125 | N/A | MAJOR KIT | 1 | ALL INTERNAL PARTS |
