Caterpillar D343 D353 Seawater Pump Replacement JMP JPR-CT353
Caterpillar D343 D353 Seawater Pump Replacement JMP JPR-CT353
Regular price
$2,640.00 AUD
Regular price
$3,600.00 AUD
Sale price
$2,640.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Caterpillar D343 D353 Seawater Pump Replacement JMP JPR-CT353
Replaces Jabsco pump 17360-1001, Caterpillar pump 3N1888
Includes drive gear.
This is a non-OEM, aftermarket part JMP JPR - CT353.

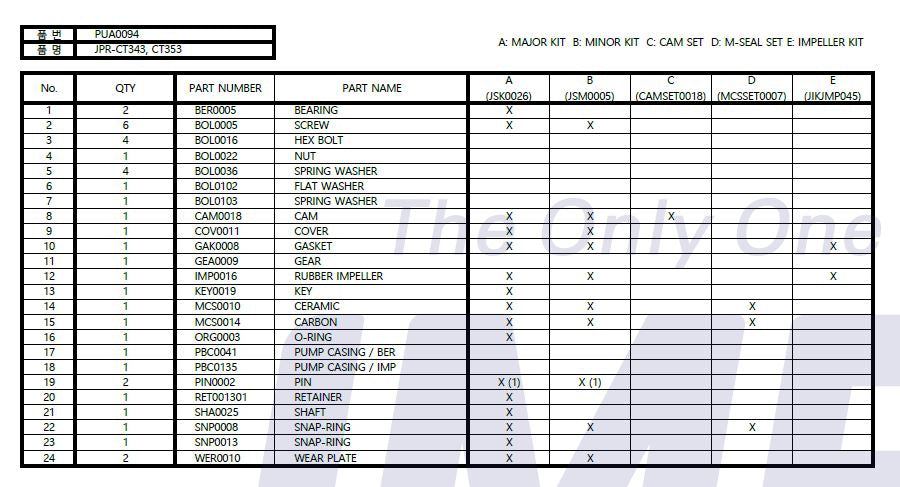

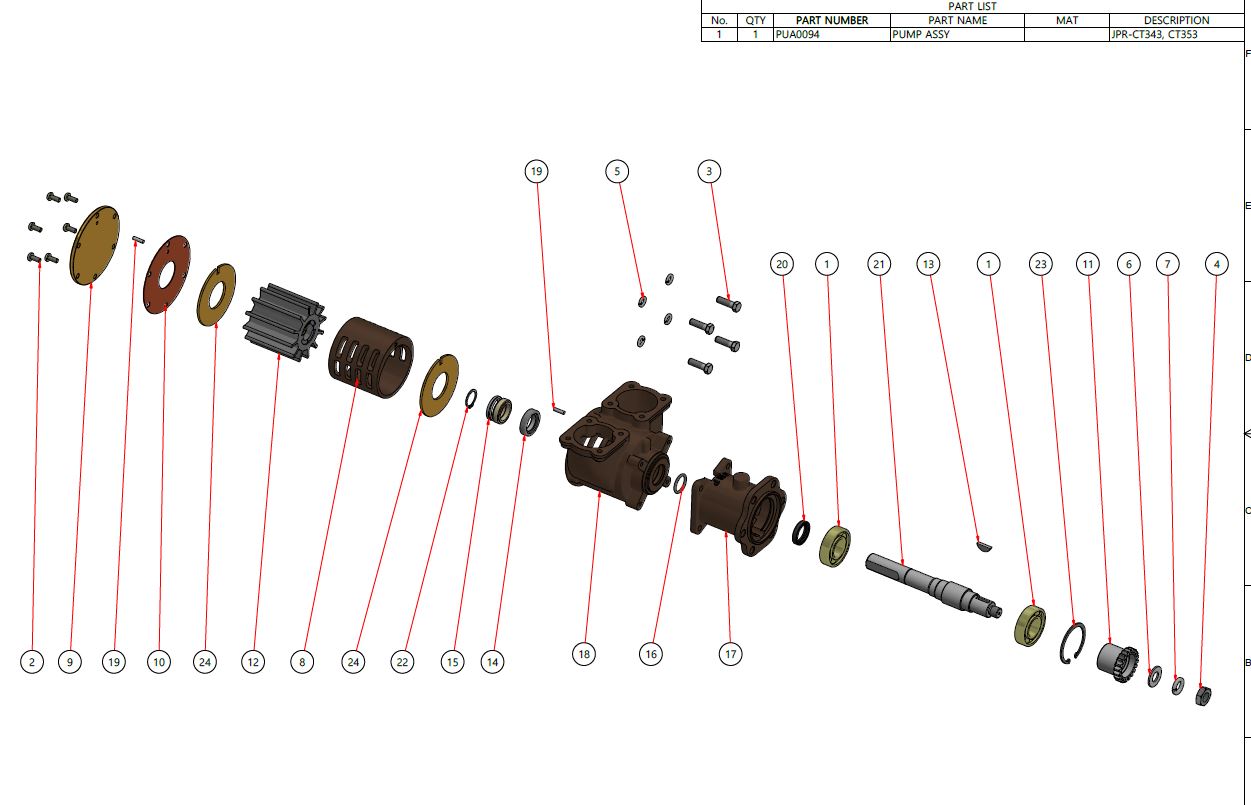

Pump Parts:
3N48611B8712
| JMP | Caterpillar | Desription | Qty | Notes |
|---|---|---|---|---|
| JPR-CT353 | 3N1888 | Seawater Pump | 1 | |
| BER0005 | 1B3867 | Ball Bearing | 2 | |
| BOL0005 | 23501649 | Screw (cover) | 6 | |
| CAMSET0018 | 3N4860 C | Cam Liner | 1 | Aluminium Bronze |
| COV0011 | 3N4854 | End Cover | 1 | |
| GAK0008 | 3N4861 | Gasket (cover) | 1 | |
| 8300-01 | 3N4859 | Impeller | 1 | |
| KEY0019 | 1B8712 | KEY | 1 | |
| ORG0013 | Cover Gasket | 1 | ||
| KEY0010 | Key | 1 | ||
| MCSSET0007 | 3N5632 | Mechanical Seal | 1 | |
| ORG0003 | 3N4866 | O Ring | 1 | |
| PIN0002 | 3N4855 | Dowel Pin | 1 | |
| RET001301 | 3N4863 | Oil Seal | 1 | |
| SHA0025 | 3N5692 | Shaft | 1 | |
| SNP0008 | 3N7759 | Snap Ring Small | 1 | |
| SNP0013 | 1L4775 | Snap Ring Large | 1 | |
| WER0010 | 3N4862 | Wear Plate | 2 | |
| GEA0009 | 4L8469 | Gear | 1 | 20 Teeth Drive |
| JSM0005 | Minor Kit | 1 | ||
| JSK0026 | Major Kit | All internal parts |
