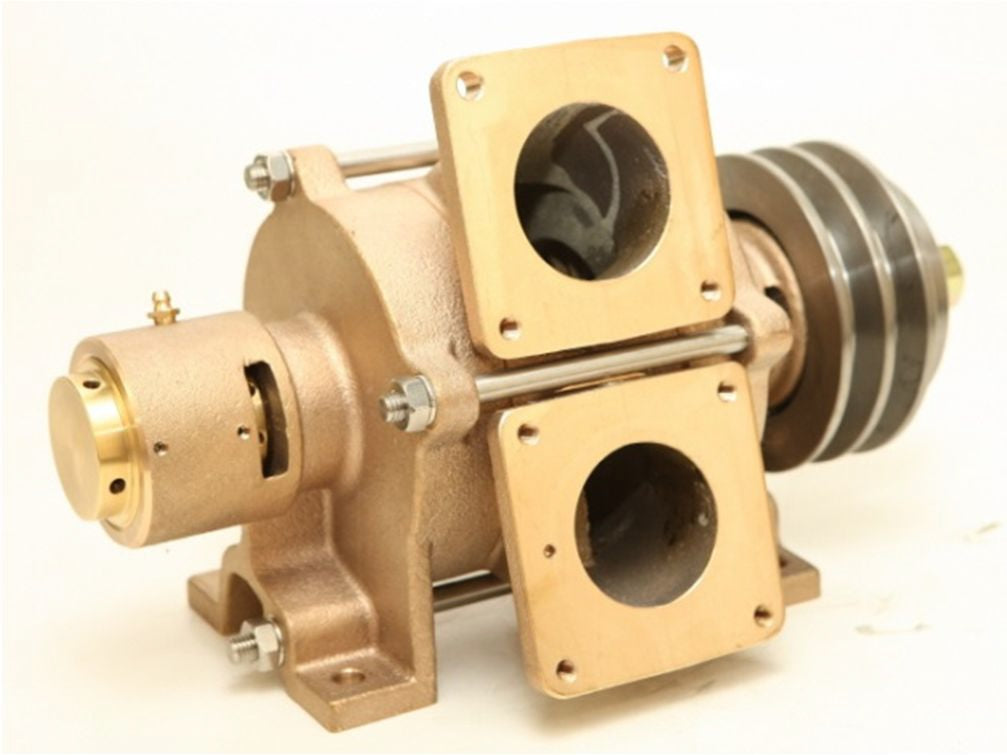

Doosan 4V158TIH Seawater Pump JMP JPR-D6505
Doosan 4V158TIH Seawater Pump JMP JPR-D6505
Regular price
$5,830.00 AUD
Regular price
Sale price
$5,830.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Raw water pump for DOOSAN - 4V18TI, 4V222TI. / 400924-00006
This is a non-OEM, aftermarket pump JMP JPR-D6505
Availability - Please check prior to order Aprox 10-14 Days to order in
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2" | 2" | 377 x 205 x 222 | 24.0 kgs |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| IMP0021 | Impeller | 1 | ||
| JSM0040 | Minor Kit | 1 | ||
| JSK0054 | Major Kit | 1 | ||
| BER0013 | Bearing Drive | 1 | ||
| BER0007 | Bearing Seal | 1 | ||
| N/A | Screw | |||
| N/A | Camset | 1 | ||
| N/A | End Cover | 1 | ||
| GAK0021 | Cover Gasket | 1 | ||
| KEY0014 | Key | 1 | ||
| MCSSET0004 | Seal | 1 | ||
| RET0006 | Retainer Drive | 1 | ||
| RET0007 | Retainer Seal | 1 | ||
| SHA0059 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| N/A | Snap Ring Seal | 1 | ||
| SNP0004 | Snap Ring Drive | 1 | ||
| N/A | Wear Plate | 1 | ||
| PUL0017 | Clutch / Drive | 1 |
