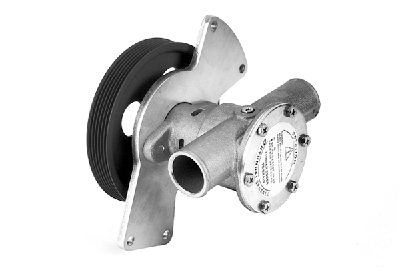

JMP JPR-HDS200 Hyundai Seasall Seawater Pump
JMP JPR-HDS200 Hyundai Seasall Seawater Pump
Regular price
$2,530.00 AUD
Regular price
Sale price
$2,530.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This is a non-OEM, aftermarket pump JMP JPR-HDS200
Special order in 10-14 days lead time
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1-1/4" | 1-1/4" | 155 x 160 x 94 | 3.6 kgs |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 7400-01 | Impeller | 1 | ||
| JSM0116 | Minor Kit | 1 | ||
| JSK0116 | Major Kit | 1 | ||
| BER0045 | Bearing Drive | 1 | ||
| BER0045 | Bearing Seal | 1 | ||
| BOL0080 | Screw | |||
| CAMSET000301 | Camset | 1 | ||
| COV0003 | End Cover | 1 | ||
| ORG0013 | Cover Gasket | 1 | ||
| KEY0010 | Key | 1 | ||
| MCSSET0008 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| N/A | Retainer Seal | 1 | ||
| SHA0072 | Shaft | 1 | ||
| SLI0005 | Slinger | 1 | ||
| SNP0006 | Snap Ring Seal | 1 | ||
| SNP0009 | Snap Ring Drive | 1 | ||
| WER0001 | Wear Plate | 1 | ||
| PUL0029 | Clutch / Drive | 1 |
