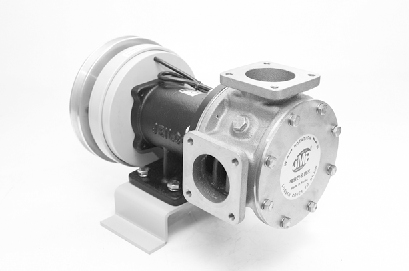

This is a non-OEM, aftermarket pump JMP JPR-M65LF
Dimensions:| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2-1/2" | 2-1/2" | 370 x 205 x 240 | 33.5kg |
Pump Parts:
| JMP | OEM | Desription | Qty | Notes |
|---|---|---|---|---|
| 9100-01 | Impeller | 1 | ||
| JSM0015 | Minor Kit | 1 | ||
| JSK0016 | Major Kit | 1 | ||
| BER0023 | Bearing Drive | 1 | ||
| BER0023 | Bearing Seal | 1 | ||
| BOL0006 | Screw | |||
| CAMSET0009 | Camset | 1 | ||
| COV0009 | End Cover | 1 | ||
| ORG0012 | Cover Gasket | 1 | ||
| KEY0008 | Key | 1 | ||
| MCSSET0005 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| N/A | Retainer Seal | 1 | ||
| SHA0015 | Shaft | 1 | ||
| SLI0004 | Slinger | 1 | ||
| SNP0019 | Snap Ring Seal | 1 | ||
| SNP0016 | Snap Ring Drive | 1 | ||
| WER0005 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
