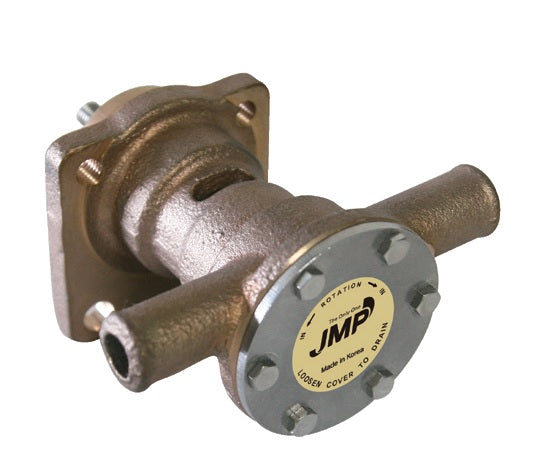

Seawater pump for Kohler Generators / Perkins Engines.
Replaces Kohler GM 58527, for Kohler 6EOD 4.5EFOD
Replaces Jabsco pump 29350-1001 used on Perkins M20
This is a JMP Marine pump JMP JPR-PK10IH
Dimensions:
| Inlet |
Outlet |
Size (LxWxH) |
Weight |
Notes |
| 18mm |
18mm |
122 x 104 x 72 |
1.1 kgs |
|

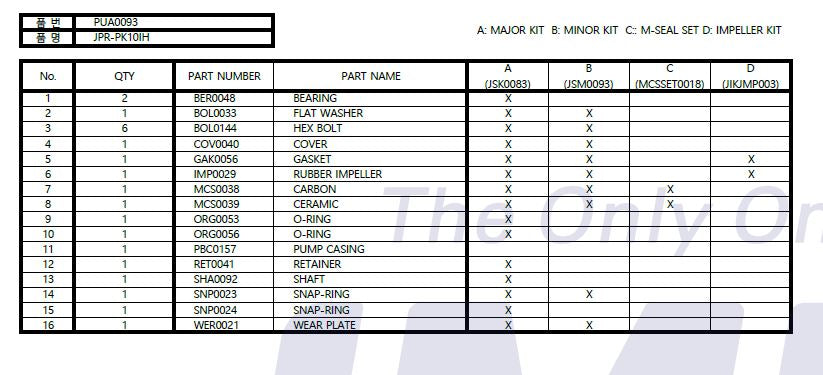

Pump Parts (Compatible with original):
| JMP |
OEM |
Description |
Qty |
Notes |
| 7001-01 |
|
Impeller |
1 |
|
| JSM0093 |
|
Minor Kit |
1 |
|
| JSK0083 |
|
Major Kit |
1 |
|
| BER0048 |
|
Bearing Drive |
1 |
|
| BER0048 |
|
Bearing Seal |
1 |
|
| BOL0144 |
|
Screw |
|
|
| N/A |
|
Camset |
1 |
|
| COV0040 |
|
End Cover |
1 |
|
| ORG0056 |
|
Cover Gasket |
1 |
|
| N/A |
|
Key |
1 |
|
| MCSSET0018 |
|
Seal |
1 |
|
| N/A |
|
Retainer Drive |
1 |
|
| RET0041 |
|
Retainer Seal |
1 |
|
| SHA0092 |
|
Shaft |
1 |
|
| N/A |
|
Slinger |
1 |
|
| SNP0023 |
|
Snap Ring Seal |
1 |
|
| SNP0024 |
|
Snap Ring Drive |
1 |
|
| WER0021 |
|
Wear Plate |
1 |
|
|
|
Clutch / Drive |
1 |
|
