Volvo Penta 3829311 TAMD 100, 120, 121, 122 Series JMP JPR-V2000
Volvo Penta 3829311 TAMD 100, 120, 121, 122 Series JMP JPR-V2000
Regular price
$2,090.00 AUD
Regular price
Sale price
$2,090.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

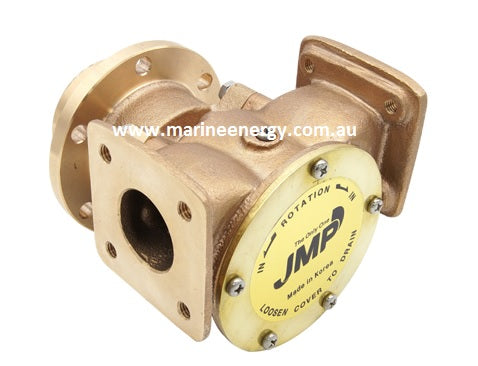

JMP Marine Seawater Pump JPR-V2000 replaces Volvo pump 3829311, 822787, 846354 and Johnson pump 10-21915-01.
Suits Volvo Penta marine engines TAMD61/62, TAMD71/72/73, MD100/120, TD100/120, TMD100/120, TAMD100/102/120.

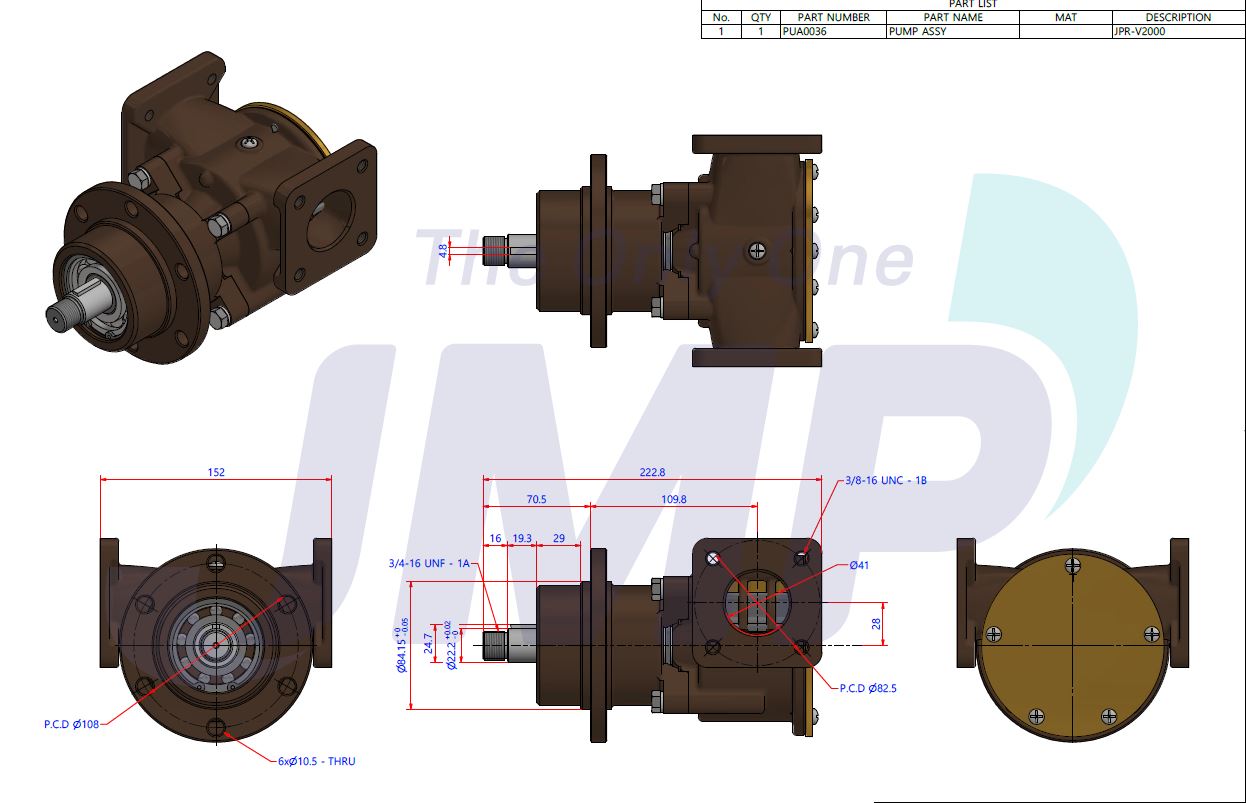

Ports: 1½" FLANGE. Weight 8.1KG.

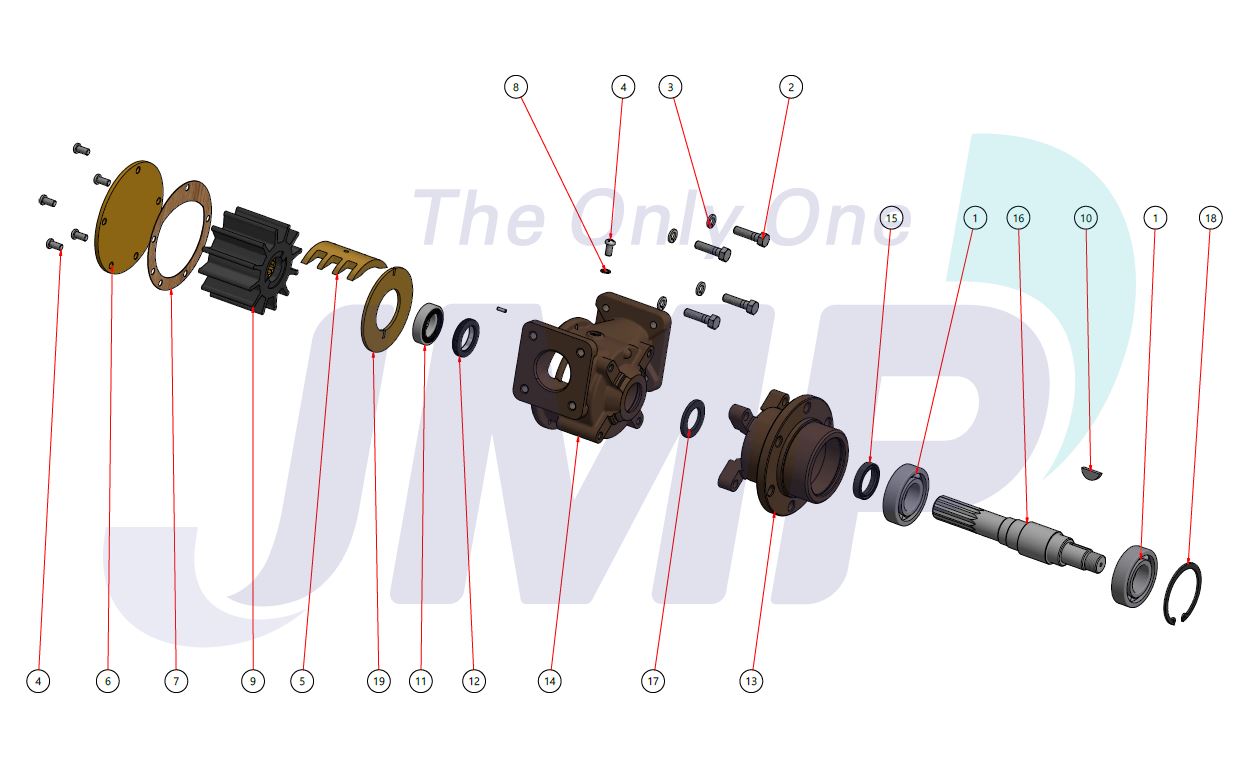

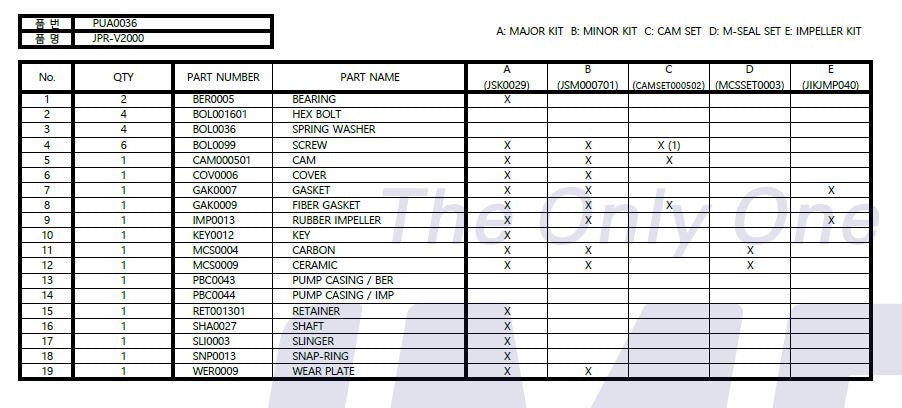

Pump Parts: (Compatible with Volvo Penta Pump)
| Description | Volvo Number |
JMP Number |
Included Minor Kit |
Included Major Kit |
|---|---|---|---|---|
| Seawater Pump | 822787 |
JPR-V2000 | ||
| Minor Kit | N/A | JSM0007 | ||
| Major Kit | N/A | JSK0029 | ||
| IMPELLER |
21730344 |
JMP 8100 | ||
| Mechanical Seal |
822767 |
MCSSET0003 | ||
| Oil Seal |
825737 |
RET001301 | ||
| End Cover |
863497 |
COV0006 | ||
| Screw, End Cover (5) | 959931 | BOL0099 | ||
| Gasket, End Cover |
3829314 |
GAK0007 | ||
| Wear Plate | 826230 | WER0009 | ||
| CAM | 849321 | CAMSET000502 | ||
| Key, Woodruff |
942406 |
KEY0012 | ||
| Bearings (2) |
11013 |
BER0005 | ||
| Shaft | 822789 |
SHA0027 | ||
| Slinger |
826234 |
SLI0003 | ||
| Snap Ring |
825735 |
SNP0013 |
