Pump Kit (Major) Volvo Penta D13B/C 22905150 JPR-VP0130D JSK 0096
Pump Kit (Major) Volvo Penta D13B/C 22905150 JPR-VP0130D JSK 0096
Regular price
$2,090.00 AUD
Regular price
Sale price
$2,090.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

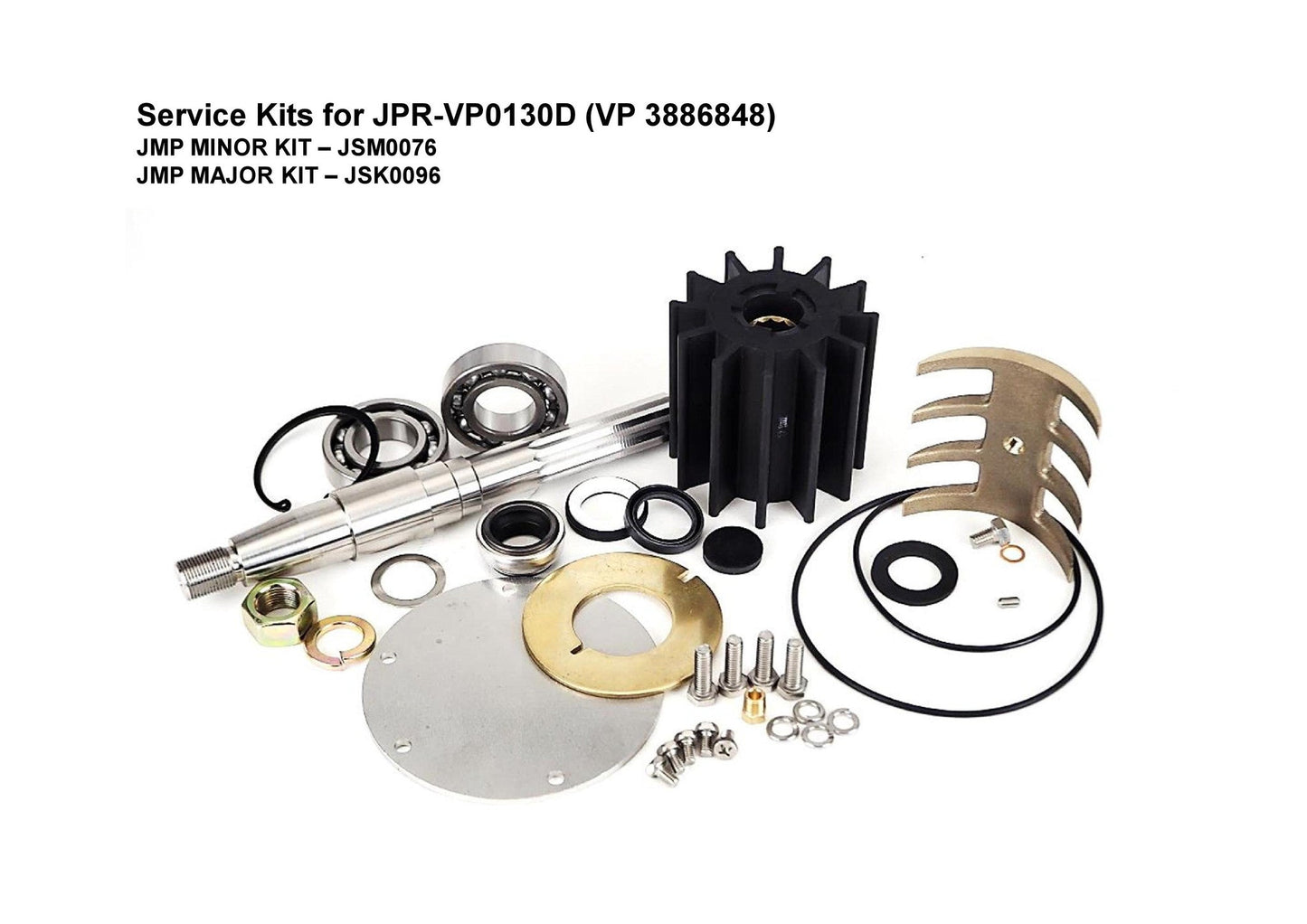

Major pump repair kit suits Volvo Penta pump 22905150, 23271274, 3886848 / JMP pump JPR-VP0130D.
This is a JMP Marine Part JSK0096.
Kit contents list (interchangeable with Volvo Penta):
| No. | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| MINOR KIT | JSM0076 | |||||
| 1 | Ball Bearing | 2 | 11013 | Yes | BER0005 | ✔ |
| 2 | Hexagon Screw | 4 | 940135 | Yes | BOL0016 | ✔ |
| 4 | Spring Washer | 4 | 941907 | Yes | BOL0036 | ✔ |
| 5 | Screw, End Cover | 5 | 3583605 | Yes | BOL0081 | |
| 7 | Hexagon nut | 1 | 3587886 | Yes | BOL0160 | ✔ |
| 8 | Spring Washer | 1 | 941914 | Yes | BOL0161 | ✔ |
| 7 | CAMSET | 1 | 3830661 | CAMSET0028 | ✔ | |
| Cam | 1 | 3830661 | Yes | CAM0028 | ||
| Washer, Cam | 1 | 3830665 | Yes | BOL0031 | ✔ | |
| Screw, Cam | 1 | Yes | BOL0137 | ✔ | ||
| 8 | End Cover | 1 | 3817938 | Yes | COV0037 | |
| 9 | Gear | 1 | 8131848 | Yes | GEA0020 | ✔ |
| 10 | Impeller Kit | 1 | 3830459 | Yes | 8326K | ✔ |
| Impller | 1 | 3830459 | Yes | 8326-01 | ✔ | |
| O-ring | 1 | 925259 | Yes | ORG0059 | ✔ | |
| 11 | Mechanical Seal | 1 | 3829315 | Yes | MCSSET0003 | ✔ |
| 12 | Drain Plug | 1 | 981749 | Yes | NIP0014 | ✔ |
| 14 | O-ring, Mounting (Viton) | 1 | 992065 | Yes | ORG0060 | ✔ |
| 15 | Pivot pin | 1 | 3817937 | Yes | PIN0005 | ✔ |
| 16 | Oil Seal | 1 | 845795 | Yes | RET001301 | ✔ |
| 17 | Shaft | 1 | 21165584 | Yes | SHA0113 | ✔ |
| 18 | Slinger | 1 | 812964 | Yes | SLI0003 | ✔ |
| 19 | Snap Ring | 1 | 825735 | Yes | SNP0013 | |
| 20 | Washer | 1 | 3829449 | Yes | SPC0012 | |
| 21 | Wear Plate | 1 | 826230 | Yes | WER0018 |
