Major Service Kit for Volvo Penta D4 seawater pump 3584062 JSK0101
Major Service Kit for Volvo Penta D4 seawater pump 3584062 JSK0101
Regular price
$858.00 AUD
Regular price
Sale price
$858.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

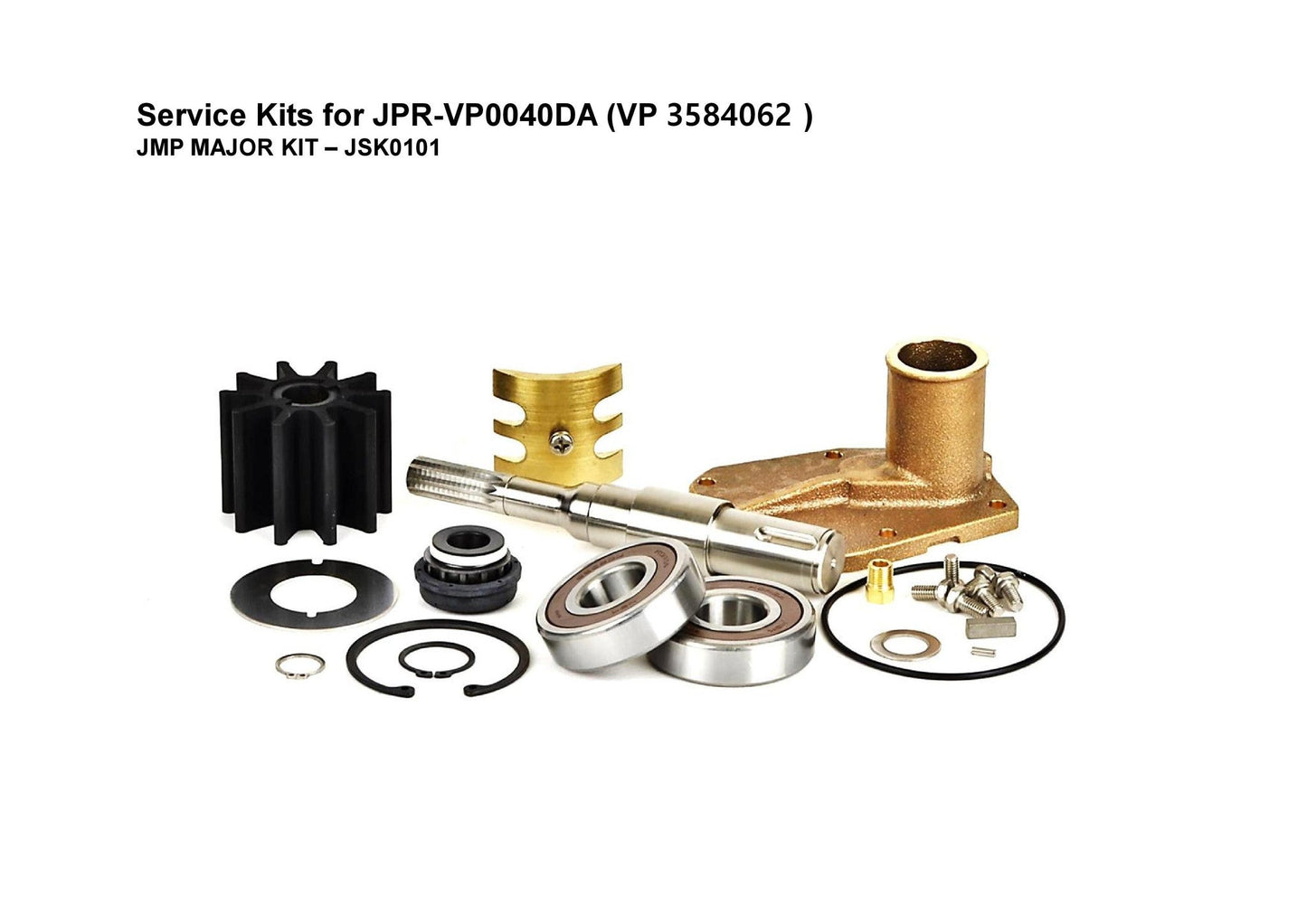

Major Repair kit suits Volvo Penta D4 marine engines with seawater pump 3584062 / JPR-VP0040DA.
This is a JMP Marine part JSK0101.
Parts are interchangeable with the original Volvo pump.
Kit Contents:
| No. | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| Sea water pump | 1 | 3584062 | Yes | JPR-VP0040DA | ||
| 1 | Ball Bearing | 2 | 21422639 | Yes | BER0052 | ✔ |
| 2 | Screw, End Cover | 6 | 3583604 | Yes | BOL0081 | ✔ |
| 3 | Cam Set | 1 | 3583612 | Yes | CAMSET0039 | ✔ |
| Cam | 1 | 3583612 | Yes | CAM0003 | ✔ | |
| Screw, Cam | 1 | 3583605 | Yes | BOL0002 | ✔ | |
| 4 | Impeller Kit | 1 | 3588475 | Yes | 7426K | ✔ |
| Impeller | 1 | 3583611 | Yes | 7426-01 | ✔ | |
| O-ring, End Cover | 1 | 888386 | Yes | ORG0071 | ✔ | |
| 5 | Key, Woodruff | 1 | 3583609 | Yes | KEY0032 | ✔ |
| 6 | Mechanical Seal | 1 | 981749 | Yes | MCSSET0023 | ✔ |
| 7 | Plug, Drain | 1 | 3583614 | Yes | NIP0014 | ✔ |
| 8 | O-ring, Cam | 1 | 3583613 | Yes | ORG0002 | ✔ |
| 9 | End Cover | 1 | 888387 | Yes | PBC0216 | ✔ |
| 10 | Pin, Wear Plate | 1 | 3583599 | Yes | PIN0001 | |
| 11 | Pulley | 1 | 21418999 | Yes | PUL0034 | ✔ |
| 12 | Shaft | 1 | 804709 | Yes | SHA0123 | ✔ |
| 13 | Snap Ring, Pulley | 1 | 809444 | Yes | SNP0004 | ✔ |
| 14 | Snap Ring (M-Seal) | 1 | 21422641 | Yes | SNP0006 | ✔ |
| 15 | Snap Ring (Large) | 1 | 888388 | Yes | SNP0013 | ✔ |
| 16 | Washer | 1 | 807589 | Yes | SPC0019 | ✔ |
| 17 | Wear Plate | 1 | N/A | Yes | WER0029 | |
| 19 | Service Kit - Minor | 1 | N/A | Yes | JSM0101 | |
| 18 | Service Kit - Major | 1 | Yes | JSK0101 |
