Pedastal Pump 1-1/4" Cummins N855 Seawater Pump 3010336, 3278137 Replacement
Pedastal Pump 1-1/4" Cummins N855 Seawater Pump 3010336, 3278137 Replacement
Regular price
$1,870.00 AUD
Regular price
Sale price
$1,870.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cummins N855 Seawater Pump 3010336, 3278137 Replacement
Raw water pump for Cummins engines NH220, NH250, VT555, N855, NT855M, NTA855M.
Replaces Cummins 3010336, 3278137
Replaces Jabsco 7420-0101, 7420-0004
Replaces Northern Lights 25-14801
Port type: Hose 1.25"
This is a non-OEM, aftermarket part JMP JPR-C1040.
Internal parts are not the same as original: performance improvements have been made (impeller and shaft).

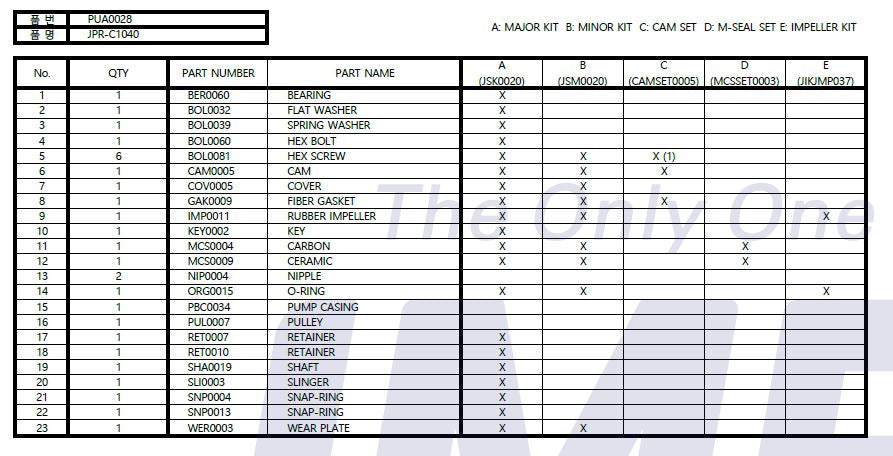

Pump Parts:
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1040 | SEA WATER PUMP | 1 | RE-ENGINEERED |
| BER0010 | BALL BEARING | 1 | |
| BOL0081 | SCREW, END COVER | 5 | |
| CAMSET0005 | CAM SET | 1 | WITH SCREW & PACKING |
| COV0005 | END COVER | 1 | |
| 8001-01 | IMPELLER | 1 | |
| MCSSET0003 | MECHANICAL SEAL SET | 1 | |
| ORG0015 | O-RING | 1 | |
| RET0007 | OIL SEAL | 1 | |
| RET0010 | OIL SEAL | 1 | |
| SHA0019 | SHAFT | 1 | |
| KEY0002 | KEY | 1 | |
| WER0003 | WEAR PLATE | 1 | |
| JSM0020 | MINOR KIT | 1 | |
| JSK0020 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
