Cummins KT19, KTA19M Seawater Pump 3049158, 3074540 Replacement
Cummins KT19, KTA19M Seawater Pump 3049158, 3074540 Replacement
Regular price
$10,560.00 AUD
Regular price
Sale price
$10,560.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Raw water pump for Cummins KT19M, KTA19M, KTA19M3/M6, KTA19-D(M), KTA19-D(M1) engines
Gilkes style seawater pump replaces Cummins 3049158 and 3074540. The Gilkes pump has metal impeller 3074619 / IMP002601.
For flexible impeller type, see Cummins 3866609 (JMP C1905).
This is a non-OEM, aftermarket pump JMP JPR C1900.
Special Order in Item lead time 4-5 weeks or TBA at the time of order .

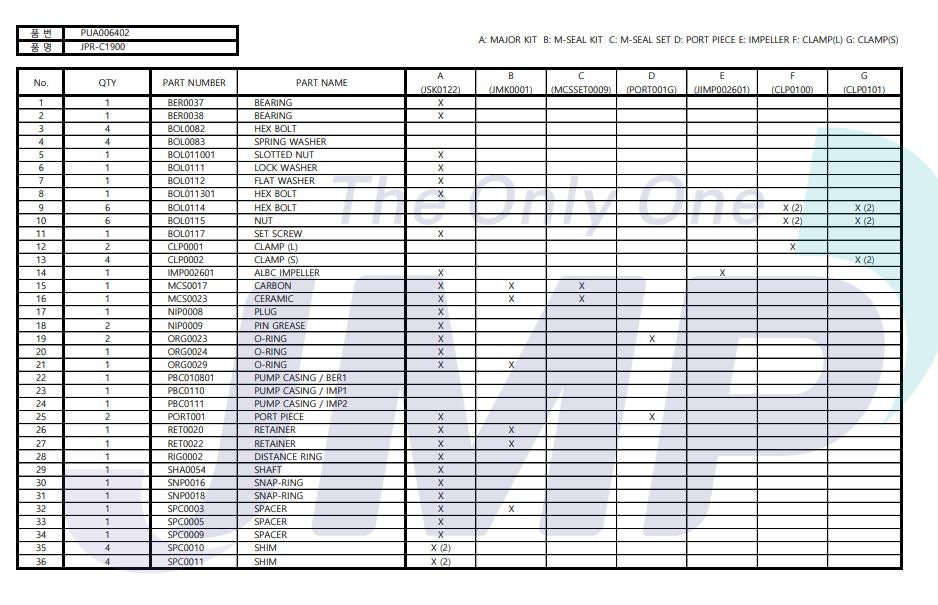

Pump Parts:
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1900 | SEA WATER PUMP | 1 | WITH CLAMP |
| JPR-C1900G | SEA WATER PUMP | 1 | WITH CLAMP, GEAR |
| BER0037 | BALL BEARING | 1 | |
| BER0038 | BALL BEARING | 1 | |
| CLP0100 | CLAMP ASSEMBLY(LARGE) | 1 | |
| CLP0101 | CLAMP ASSEMBLY(SMALL) | 2 | |
| IMP002601 | IMPELLER | 1 | 3074619 |
| MCSSET0009 | MECHANICAL SEAL SET | 1 | |
| ORG0023 | O-RING | 2 | |
| ORG0024 | O-RING | 1 | |
| ORG0029 | O-RING | 1 | |
| PORT001G | PLATE, PORT | 2 | WITH ORG0023 |
| RET0020 | OIL SEAL | 1 | |
| RET0022 | OIL SEAL | 1 | |
| RIG0002 | RING, DISTANCE | 1 | |
| SHA0054 | SHAFT | 1 | |
| SNP0016 | SNAP RING | 1 | |
| SNP0018 | SNAP RING | 1 | |
| SPC0003 | SPACER | 1 | |
| GEA0015 | GEAR | 1 | |
| JMK0001 | SEAL KIT | 1 | INCLUDES No.14,15,21,26,27,32 |
| JSK0122 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
