Detroit Diesel 8V92TA & 16V92TA Seawater Pump Replacement G6300
Detroit Diesel 8V92TA & 16V92TA Seawater Pump Replacement G6300
Regular price
$4,070.00 AUD
Regular price
Sale price
$4,070.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

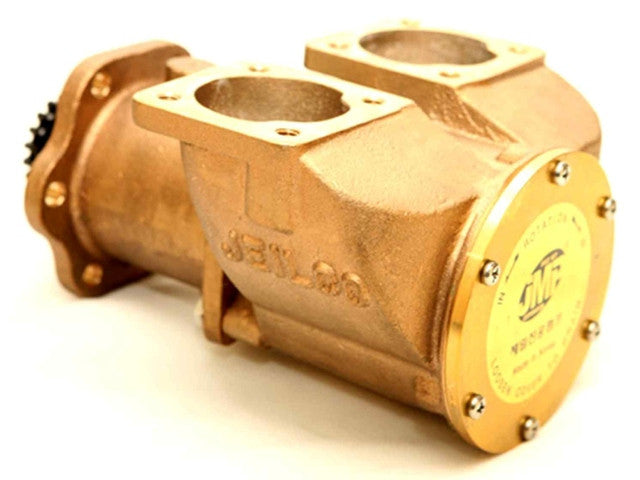

Raw water pump suits Detroit Diesel marine engines 8V92TA & 16V92TA
Replaces Detroit Diesel pumps 8923363, 23507475, 23507476, 23507477, 23507973
This is a non-OEM, aftermarket part JMP JPR G6300.
This pump is supplied with the drive gear.
Parts are interchangeable with the original pump.
Impeller: JMP - 8300-01 (Detroit Diesel 23501648, Jabsco 17370-0001)
Service Kit:
JMP Major - JSK0026
JMP Minor - JSM 0005
DDC: 8927566
| JMP | DETROIT | DESCRIPTION | QTY | NOTES |
|---|---|---|---|---|
| JPR-G6300 | 23507973 | SEA WATER PUMP | 1 | |
| BER0005 | 8927574 | BALL BEARING | 2 | |
| BOL0005 | 23501649 | SCREW, END COVER | 6 | |
| CAMSET0018 | 8927571 | CAM LINER | 1 | |
| COV0011 | 8927569 | END COVER | 1 | |
| GAK0008 | 23501648 | GASKET, END COVER | 1 | |
| 8300-01 | 8927570 | IMPELLER | 1 | |
| KEY0019 | 23501664 | KEY | 1 | |
| MCSSET0007 | 8927573 | MECHANICAL SEAL SET | 1 | |
| ORG0003 | 23501652 | O-RING | 1 | |
| PIN0002 | N/A | DOWEL PIN | 2 | |
| RET001301 | 23501651 | OIL SEAL | 1 | |
| SHA0025 | 8927572 | SHAFT | 1 | |
| SNP0013 | 23501656 | SNAP RING | 1 | |
| WER0010 | 8927568 | WEAR PLATE | 2 | |
| GEA0009 | N/A | GEAR | 1 | |
| JSM0005 | N/A | MINOR KIT | 1 | |
| JSK0026 | 8927566 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
