MTU Detroit Diesel 60 Series Seawater Pump Replacement
MTU Detroit Diesel 60 Series Seawater Pump Replacement
Regular price
$5,500.00 AUD
Regular price
Sale price
$5,500.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MTU Detroit Diesel 60 Series Seawater Pump Replacement
Replaces Detroit Diesel 23535447 (Previous 23525353, 23525078)
Replaces Jabsco 17540-0001 / 17540-0201
Impeller: JMP 9000-01 (Jabsco 18786-0001W / Ancor 4823)
Service Kit (Major): JMP - JSK0079 (Same parts as Jabsco Pump)
Service Kit (Minor): JMP - JSM 0004 (Same parts as Jabsco Pump)
This is an aftermarket part, JMP JPR G6500.
Boxed weight 17kg.

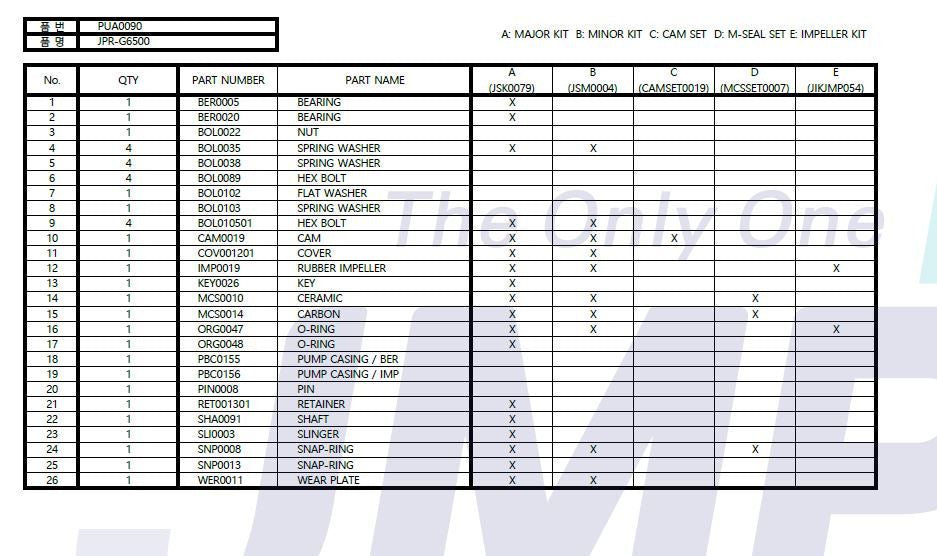

| JMP | DETROIT | DESCRIPTION | QTY | NOTES |
|---|---|---|---|---|
| JPR-G6500 | 23535200 | SEA WATER PUMP | 1 | |
| BER0005 | N/A | BALL BEARING | 1 | |
| BER0020 | N/A | BALL BEARING | 1 | |
| BOL0035 | 00120385 | WASHER, END COVER | 4 | |
| BOL010501 | 23525364 | BOLT, END COVER | 4 | |
| CAMSET0019 | 23502089 | CAM LINER | 1 | |
| COV001201 | 23525362 | END COVER | 1 | |
| 9000-01 | 23502086 | IMPELLER | 1 | |
| KEY0026 | 23525369 | KEY, WOODRUFF | 1 | |
| MCSSET0007 | 8927573 | MECHANICAL SEAL SET | 1 | |
| ORG0047 | N/A | O-RING, END COVER | 1 | |
| PIN0008 | 23502096 | PIN | 1 | |
| RET001301 | 23502092 | OIL SEAL | 1 | |
| SHA0091 | 23525360 | SHAFT | 1 | |
| SNP0013 | N/A | SNAP RING | 1 | |
| WER0011 | 23502091 | WEAR PLATE | 1 | |
| JSM0004 | N/A | MINOR KIT | 1 | |
| JSK0079 | N/A | MAJOR KIT | 1 | ALL INTERNAL PARTS |
