Kohler EFOZD Seawater Pump (Sherwood G907 P, G906 P) Replacement JPR-KL10IP2
Kohler EFOZD Seawater Pump (Sherwood G907 P, G906 P) Replacement JPR-KL10IP2
Regular price
$632.50 AUD
Regular price
Sale price
$632.50 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

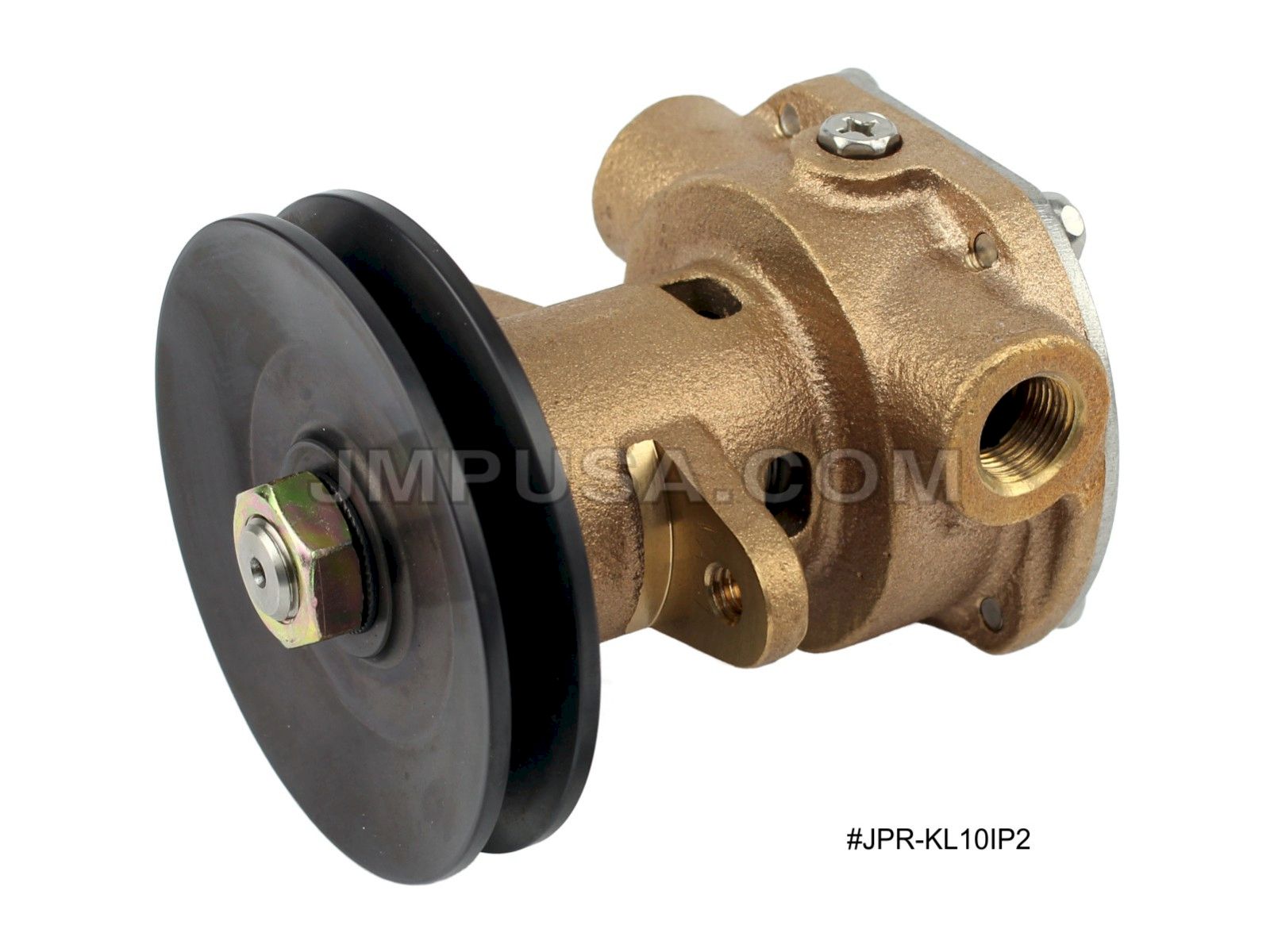

Sherwood G907P* (removable pulley) seawater pump replacement.
(For a pump with the pulley pressed on, use JPR-KL10IP)
Used on Kohler generators powered by Yanmar engines.
Kohler part number 267373 / 246489 / 344089
Used on Kohler 6.5EFOZD / 8.0 EFOZD; 7EFOZD / 9EFOZD; 8.5EFOZD / 10EFOZD; 28EFOZD / 32EOZD 23EFOZD / 27EFOZD 25EFOZD / 28EFOZD.
*Sherwood G907P (with pulley) replaced Sherwood G907 (pump without pulley).
Sherwood G907P with pulley replaces Sherwood G906P with pulley.
This is a non-OEM, aftermarket part.
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 3/8" | 3/8" | 112 x 90 x 90 | 1.8 kgs |

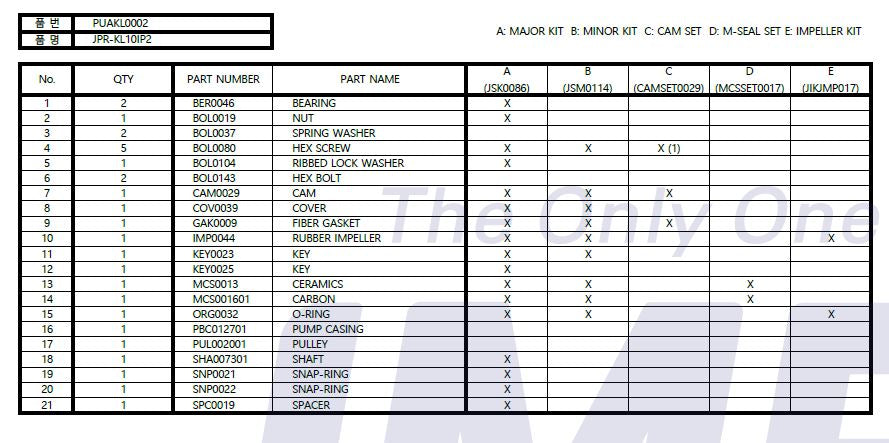

Pump Parts marked for inclusion in minor or major kits.
| POS | JMP | Description | Qty | MINOR KIT | MAJOR KIT |
|---|---|---|---|---|---|
| JSK0086 |
MAJOR KIT |
||||
| JSM0114 | MINOR KIT | ||||
| 1 | BER0046 | BEARINGS | 2 | ✔ | |
| 2 |
BOL0019 | NUT (Pulley) |
1 | ✔ | |
| 3 | BOL0080 |
SCREW (Cover) |
4 |
✔ | ✔ |
| 4 | BOL0104 |
RIB LOCK WASHER |
1 | ✔ | |
| 5,3,7 | CAMSET0029 | CAM, SCREW, GASKET |
1 | ✔ | ✔ |
| 6 | COV0039 | End Cover | 1 | ✔ | ✔ |
| 8 |
7172-01 |
IMPELLER | 1 | ✔ | ✔ |
| 9 | KEY0023 | KEY (Impeller) |
1 | ✔ | ✔ |
| 10 | KEY0025 |
KEY (Pulley) |
1 | ✔ | |
| 11,12,21 |
MCSSET0017 |
MECHANICAL SEAL |
1 | ✔ | ✔ |
| 13 | ORG0032 |
O RING |
1 | ✔ | ✔ |
| 14 | PUMP BODY | 1 | |||
| 15 | PULLEY |
1 | |||
| 16 | SHA007301 |
SHAFT |
1 | ✔ | |
| 17 | SNP0021 | SNAP RING |
1 | ✔ | |
| 18 | SNP0022 |
SNAP RING |
1 | ✔ | |
| 19 | SPC0019 |
SPACER |
1 | ✔ | |
| 20 | CAMSET0029 | CAM, SCREW, GASKET | 1 | ✔ | ✔ |
| 21 | MCSSET0017 | MECHANICAL SEAL | 1 | ✔ | ✔ |
