Cummins QSB Seawater Pump (Sherwood P2701, P2706, P2708) replacement JMP JPR-S7608
Cummins QSB Seawater Pump (Sherwood P2701, P2706, P2708) replacement JMP JPR-S7608
Regular price
$1,650.00 AUD
Regular price
Sale price
$1,650.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Replacement raw water cooling pump for Cummins Engines:
Cummins QSB 5.9, QSB 6.9, QSB 6.7 (newer models)
Upgraded shaft and seal for spline type impeller.
Replaces Cummins Pump 3922589 (Old style Sherwood 17000 keyway impeller pump)
Replaces Cummins Pump 5268375 / 4948142 / 3974455 (newer Sherwood 27000 spline impeller pump).
Replaces Sherwood Pump P/N P2701X, P2702-01, P2706-01, P2708X, P2710-01
This is a JMP Marine Pump JPR-S7608

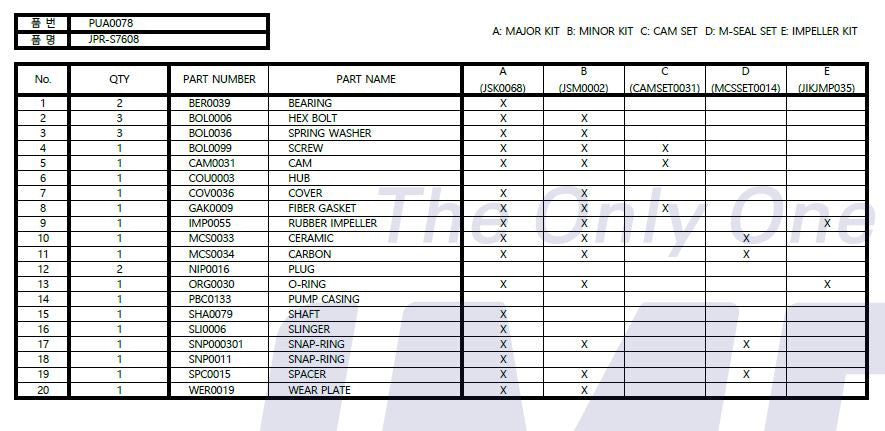

Pump Parts (design improvements made - not interchangeable with original):
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-S7608 | SEA WATER PUMP | 1 | RE-ENGINEERED |
| BER0039 | BALL BEARING | 2 | |
| BOL0006 | BOLT, END COVER | 3 | |
| BOL0036 | SPRING WASHER | 3 | |
| CAMSET0031 | CAM SET | 1 | WITH SCREW, PACKING |
| COV0036 | END COVER | 1 | |
| 7608-01 | IMPELLER | 1 | |
| MCSSET0014 | MECHANICAL SEAL SET | 1 | |
| ORG0030 | O-RING, END COVER | 1 | |
| SHA0079 | SHAFT | 1 | |
| SNP0011 | SNAP RING | 1 | |
| WER0019 | WEAR PLATE | 1 | |
| JSM0002 | MINOR KIT | ||
| JSK0068 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
