CATERPILLAR C7, C9, 3116, 3126 Seawater Pump
Seawater cooling pump suits:
CATERPILLAR Engines: 3116 / 3126 / C7 / C9
CATERPILLAR Pump: 4P7168, 170-6116, 113-1109, 152-8392
SHERWOOD Pump: P/N P1710A, P1710C P1726X, P1726, P1732X, P1732-01, P1732-02, P1732A, P1732C ( without cast ports )
Pump supplied without Drive Gear. Pump weight 6.5KG.
This is a JMP Marine pump JPR-S7632.

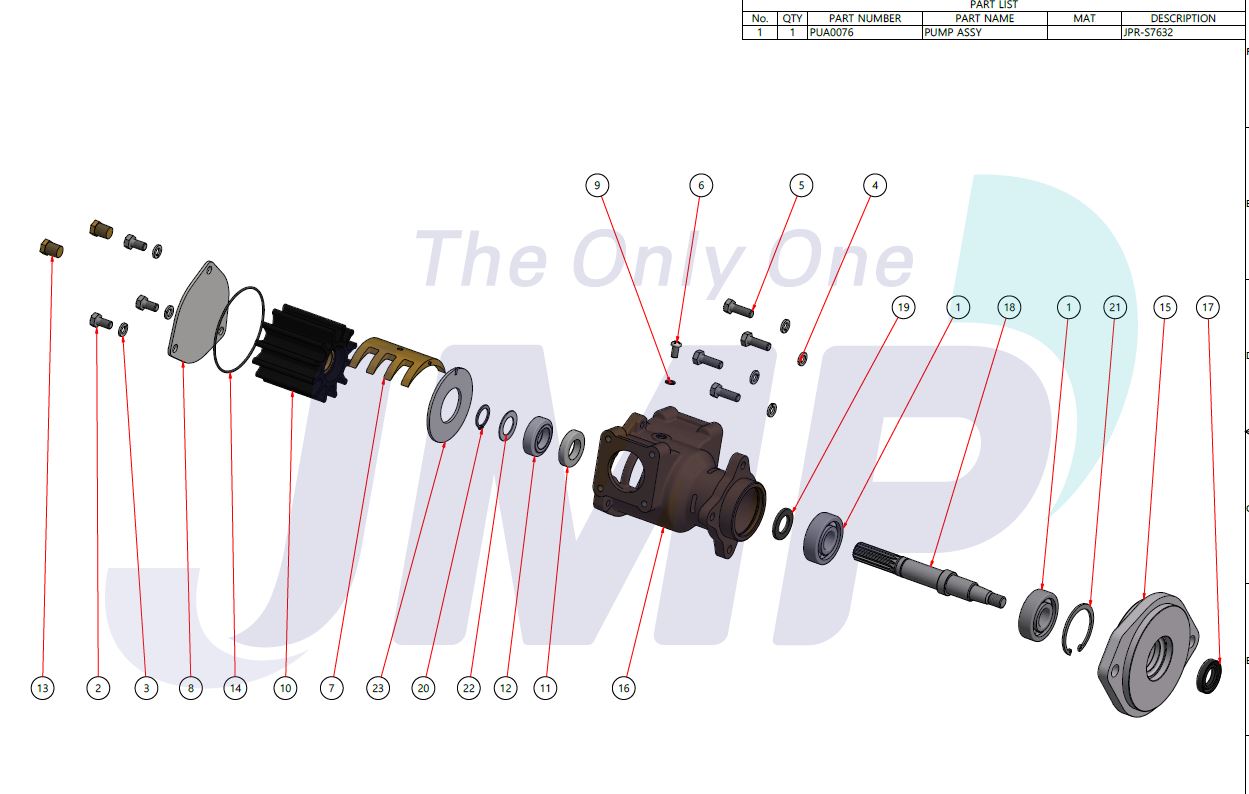

Pump Parts:
| JMP |
CAT |
DESCRIPTION |
QTY |
REMARK |
| JPR-S7632 |
1706116 |
SEA WATER PUMP |
1 |
RE-ENGINEERED |
| BER0039 |
8H4320 |
BALL BEARING |
2 |
|
| BOL0006 |
3E9854 |
HEX BOLT, END COVER |
3 |
|
| BOL0036 |
N/A |
SPRING WASHER, END COVER |
3 |
|
| CAMSET0031 |
1131110 |
CAM SET |
1 |
WITH SCREW, PACKING |
| COV0036 |
7E0317 |
END COVER |
1 |
|
| 7608-01 |
7E0321 |
IMPELLER-PUMP |
1 |
7E0321 - JMP 7600-01 |
| MCSSET0014 |
2003052 |
MECHANICAL SEAL SET |
1 |
|
| SNP000301 |
N/A |
SNAP RING (SMALL) |
1 |
|
| ORG0030 |
8T2944 |
O-RING, END COVER |
1 |
|
| RET0035 |
1149088 |
OIL SEAL |
1 |
|
| SHA0076 |
6I2072 |
SHAFT |
1 |
|
| SNP0011 |
5F5078 |
SNAP RING (LARGE) |
1 |
|
| WER0019 |
7E0328 |
WEAR PLATE |
1 |
|
| JSM0002 |
N/A |
MINOR KIT |
1 |
|
| JSK0072 |
N/A |
MAJOR KIT |
1 |
ALL INTERNAL PARTS |
This is a non-OEM, aftermarket part JMP JPR - S7632.
Pls check availability prior to placing the order ...low stock
