Yanmar 6SY, 8SY; Scania D9/11/12/16 Seawater Pump Replacement JPR-SC50IF

Yanmar 6SY, 8SY; Scania D9 Seawater Pump Replacement

Replaces Johnson 10-24308-02 (F9B-9), 10-24308-02 (F9B-905)

Suits Yanmar Engines: 6SY-STP720, 8SY-STP900

Replaces Yanmar pump: 165000-36440

Suits Scania Engines: D9, DI12, DI13, DI16, DN11, DS11, DSI11

Replaces Scania pump: 1785018 (Pump housing 1 304 981)  - 1101073

Pump with tapered shaft. For keyed shaft drive on D13 Generator model, use JPR-SC50IF2.

This is a non-OEM, aftermarket part JMP Pump JPR-SC50 IF

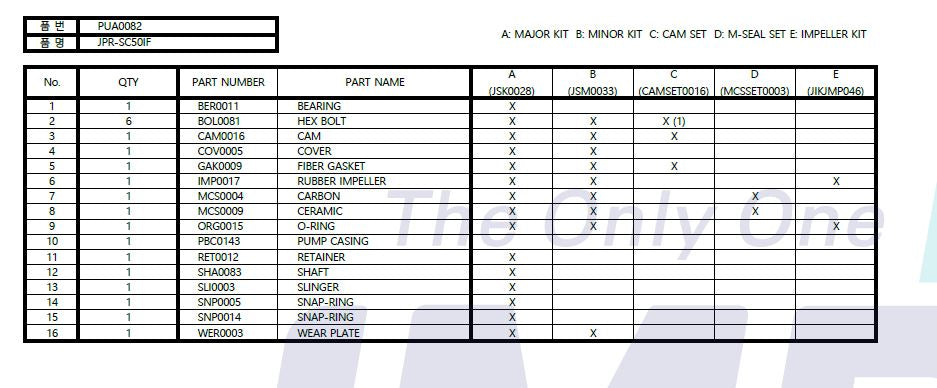

See parts list below. Internal parts are not all the same, JMP has made manufacturing improvements to this pump. Changes made to: End Cover, Cam, Wear Plate, O-Ring for Cover, Shaft, Oil Seal for Better Quality & Performance

Mounting:               Flange

Port size:                2" / Flange

Impeller:                 JMP 8301-01 (Scania 323897 / Johnson 09-814B)

CAM:                     CAMSET 0016

Size (lxwxh):          220 x 152 x 150 mm

Weight:                  7.4kgs (approx)

Major Service Kit JSK0028, Minor Service Kit JSM0033.

CROSS REFERENCE PARTS LISTING AND COMPATIBILITY
