Yanmar 2/3GM- 2/3YM Seawater Pump Replacement JPR - YM08IH
Yanmar 2/3GM- 2/3YM Seawater Pump Replacement JPR - YM08IH
Regular price
$687.50 AUD
Regular price
Sale price
$687.50 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Replacement seawater pump for Yanmar 2GM 3GM, 2YM 3YM engines.
This replacement pump has built-in cam (4mm) and 16mm / 5/8" water hose. It is supplied complete with the pulley.
Replaces Yanmar 128397-42500 & Yanmar 128377-42500 (2mm cam) / 121575-42000 & 721575-42702 / 128990-42500 w/out mounting bracket.
Replaces Johnson 10-24509 / 10-13337 (which does not have the bracket).
Plug & play design. Note internal parts are not the same as the Yanmar / Johnson pumps. This pump is upgraded to mechanical seal. Camless design - machined in body casing.
This is a JMP Marine part JPR - YM08 IH.
Minor Repair Kit - JSM0091, Major Repair Kit - JSK0082

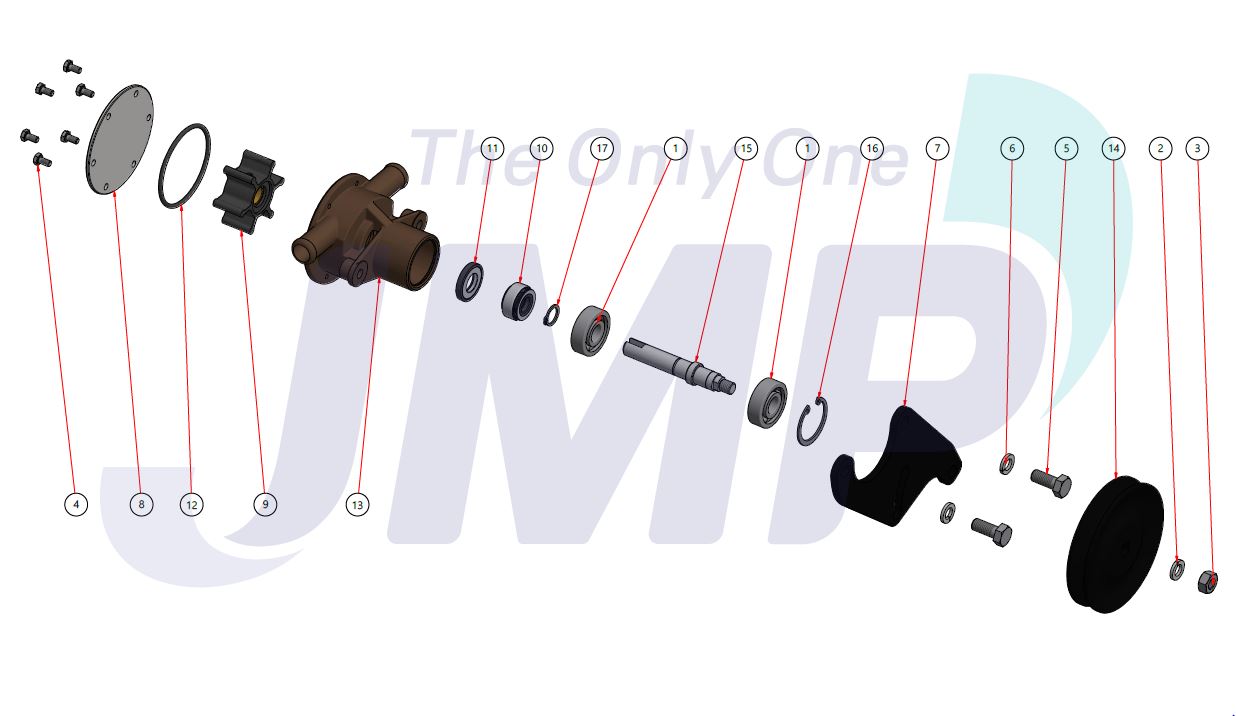

Parts List
|
Description |
JMP Part | Compatible with Original | Yanmar Number | Johnson Number | Included Minor Kit |
Included Major Kit |
|---|---|---|---|---|---|---|
| Seawater Pump | JPR-YM08IH | 128397-42500 |
10-24509-01 | |||
| Minor Kit | JSM0091 | X | ||||
| Major Kit | JSK0082 | X | ||||
| Impeller |
7050-01 | ✔ | 128397-42200 | 09-810B | ✔ | ✔ |
| Mechanical Seal |
MCSSET0020 | X | 129271-42510 | 0.2233.010 (lip seal) | ✔ | ✔ |
| Cover Plate | COV0042 | ✔ | X0142398000 | 01-42398 | ✔ | ✔ |
| O-ring, End Cover | ORG0052 | ✔ | X02173476 | 0.2173.476 | ✔ | ✔ |
| Cover Screws (6) | BOL0144 | |||||
| Bearing | BER0054 | X | X03431760 | 0.3431.760 | X | ✔ |
| Bearing | BER0054 | ✔ | X03431748 | 0.3431.748 | X | ✔ |
| Retaining Ring | SNP0026 | X | X00370012 | 0.0370.012 | ✔ | |
| Retaining Ring | SNP0025 | ✔ | X00371732 | 0.0371.732 | ✔ | |
| Shaft | SHA0095 | ✔ | ||||
| V-Pulley | PUL0027 |
