JMP Marine

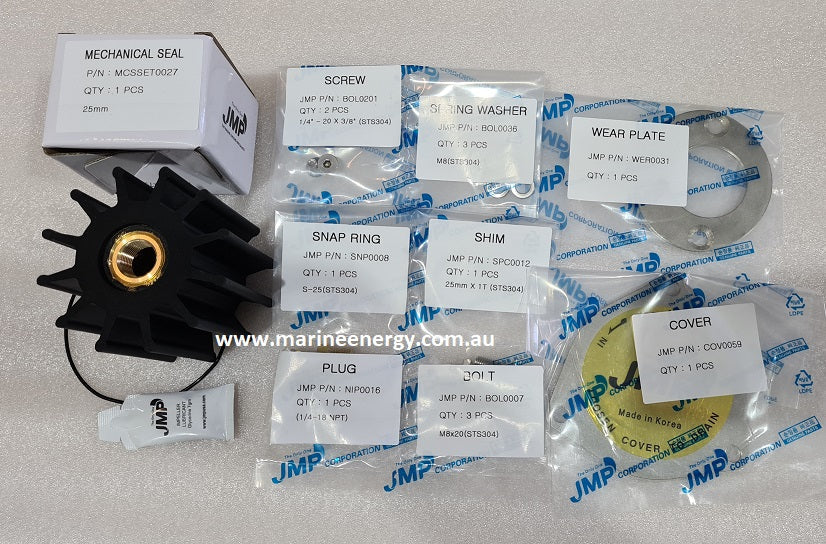

Repair Kit (Minor) Cummins QSC 8.3, QSL 9.0 Sherwood G2610X Seawater Pump JSM0137
Repair Kit (Minor) Cummins QSC 8.3, QSL 9.0 Sherwood G2610X Seawater Pump JSM0137
Regular price
$770.00 AUD
Regular price
Sale price
$770.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Minor pump repair kit for seawater pump JMP JPR-C0830 / Cummins 3967246 , 4937162 , 4937275 on Cummins QSC8.3, QSL9.0 / Sherwood G2610X, G2601, G2601-02, Sherwood G2603.
Parts compatible with original.
This is a JMP Marine part JSM 0137 (Minor Kit).
Pump Kit Parts:
| JMP | DESCRIPTION | SHERWOOD | In Minor Kit | In Major Kit |
|---|---|---|---|---|
| JPR-C0830 | SEA WATER PUMP | G2601 | ||
| JSK0137 | KIT - MAJOR | |||
| JSM0137 | KIT- MINOR | |||
| 8159-01 | IMPELLER | 26000K | 🗸 | 🗸 |
| WER0031 | WEAR PLATE | 24790 | 🗸 | 🗸 |
| COV0059 | END COVER | 24074 | 🗸 | 🗸 |
| ORG0015 | O-RING, END COVER | 19879 | 🗸 | 🗸 |
| BOL0007 | HEX BOLT, END COVER (3) | 🗸 | 🗸 | |
| BOL0008 | HEX BOLT (4) | X | 🗸 | |
| BOL0036 | SPRING WASHER, END COVER | 🗸 | 🗸 | |
| MCSSET0027 | MECHANICAL SEAL SET | 23837 | 🗸 | 🗸 |
| SHA0149 | SHAFT | 24223 | X | 🗸 |
| BER0052 | BALL BEARING | X | 🗸 | |
| BER0061 | BALL BEARING | X | 🗸 | |
| RET0042 | LIP SEAL, OIL | 25268 | X | 🗸 |
| BOL0201 | SET SCREW, WEAR PLATE | 24840 | 🗸 | 🗸 |
| NIP0016 | PLUG | 🗸 | X | |
| ORG0055 | O-RING, MOUNTING | X | 🗸 | |
| SNP0008 | CIRCLIP (EXT) | 19762 | X | 🗸 |
| SNP0013 | CIRCLIP (INT) | 19867 | X | 🗸 |
| SPC0012 | SPACER | 🗸 | 🗸 | |
| GEA0030 | GEAR | X | X | |
| BOL0167 | NUT | X | 🗸 | |
