Service Kit (Major) JSK0086 Seawater Pump JMP JPR-KL10IP2
Service Kit (Major) JSK0086 Seawater Pump JMP JPR-KL10IP2
Regular price
$495.00 AUD
Regular price
Sale price
$495.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

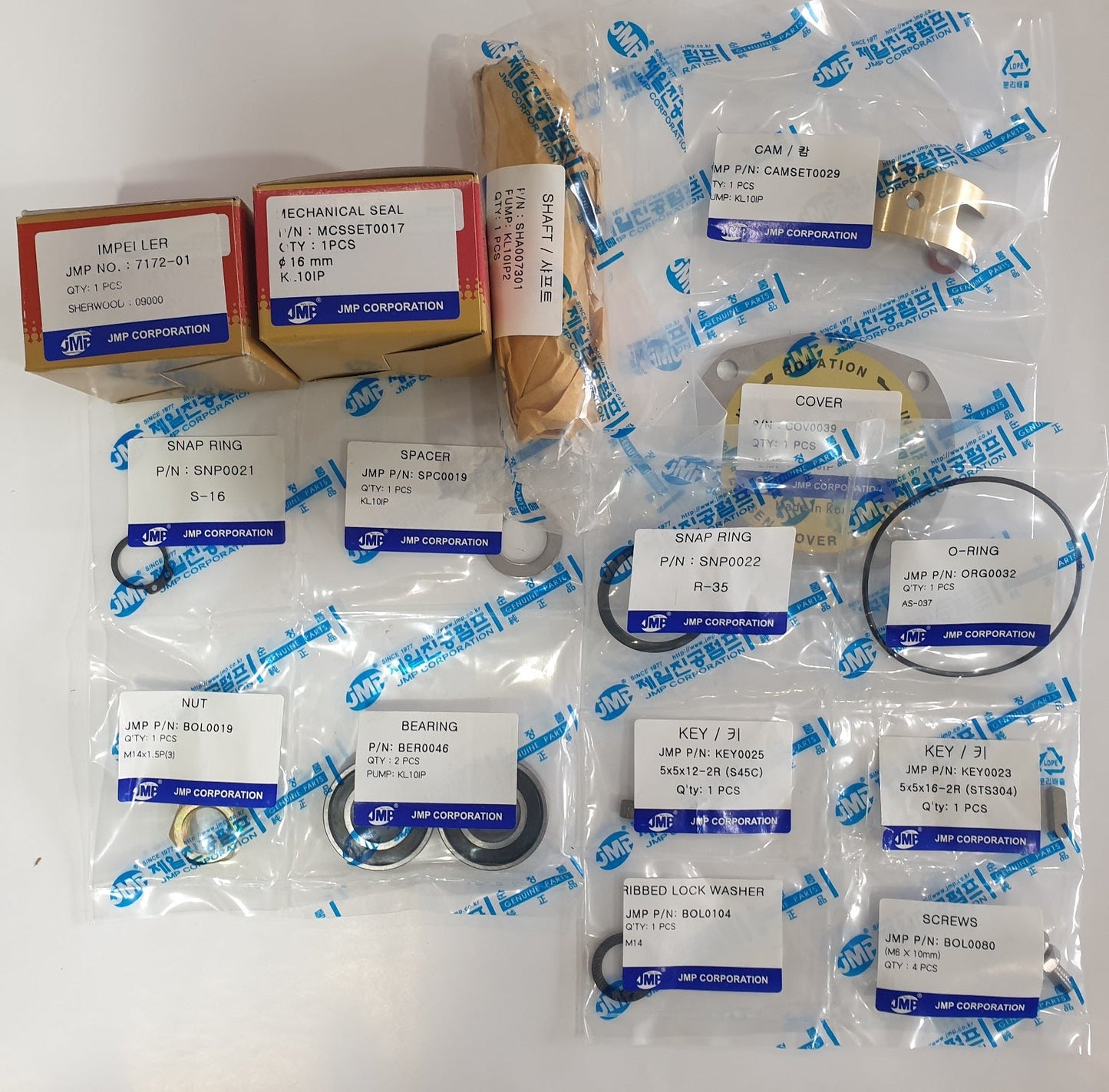

Service Kit (Major) For Seawater Pump JMP JPR-KL10IP2 & JPR-KL101P.
This is a JMP Marine part JSK 0086
Pump Parts marked for inclusion in minor or major kits.
| POS | JMP | Description | Qty | MINOR KIT | MAJOR KIT |
|---|---|---|---|---|---|
|
JSK0086 |
MAJOR KIT | ||||
| JSM0114 | MINOR KIT | ||||
| 1 | BER0046 | BEARINGS | 2 | ✔ | |
| 2 |
BOL0019 | NUT (Pulley) |
1 | ✔ | |
| 3 | BOL0080 |
SCREW (Cover) |
4 |
✔ | ✔ |
| 4 | BOL0104 |
RIB LOCK WASHER |
1 | ✔ | |
| 5,3,7 | CAMSET0029 | CAM, SCREW, GASKET |
1 | ✔ | ✔ |
| 6 | COV0039 | End Cover | 1 | ✔ | ✔ |
| 8 |
7172-01 |
IMPELLER | 1 | ✔ | ✔ |
| 9 | KEY0023 | KEY (Impeller) |
1 | ✔ | ✔ |
| 10 | KEY0025 |
KEY (Pulley) |
1 | ✔ | |
| 11,12,21 |
MCSSET0017 |
MECHANICAL SEAL |
1 | ✔ | ✔ |
| 13 | ORG0032 |
O RING |
1 | ✔ | ✔ |
| 14 | PUMP BODY | 1 | |||
| 15 | PULLEY |
1 | |||
| 16 | SHA007301 |
SHAFT |
1 | ✔ | |
| 17 | SNP0021 | SNAP RING |
1 | ✔ | |
| 18 | SNP0022 |
SNAP RING |
1 | ✔ | |
| 19 | SPC0019 |
SPACER |
1 | ✔ | |
| 20 | CAMSET0029 | CAM, SCREW, GASKET | 1 | ✔ | ✔ |
| 21 | MCSSET0017 | MECHANICAL SEAL | 1 | ✔ | ✔ |
