Yanmar 3JH3E, 4JH3E,/ -DTE and 4JH4-TE Seawater Pump 129670-42513 Replacement YM04JH01/JHA

Yanmar 3JH3E, 4JH3E,/ -DTE and 4JH4-TE Seawater Pump 129670-42513 Replacement YM04JH01/JHA

$990.00 AUD
$990.00 AUD
Sale Sold out
Shipping calculated at checkout.
Yanmar 3JH3E 4JH3 - DTE and 4JH4 - TE Seawater Pump 129670-42513 Replacement
Suits Yanmar engines 3JH3E, 4JH3E Yanmar 4JH3 - DTE and Yanmar 4JH4 - TE
Replaces Yanmar 129670-42513 / 129670-42512/ 129670-42500

Replaces Johnson 10-24508-04

Mounting gasket 129150-01881 is not included. Please add it to your purchase.

This is a non-OEM, aftermarket pump JMP JPR - YM04JH01./ JHA

All parts are interchangeable with Yanmar.

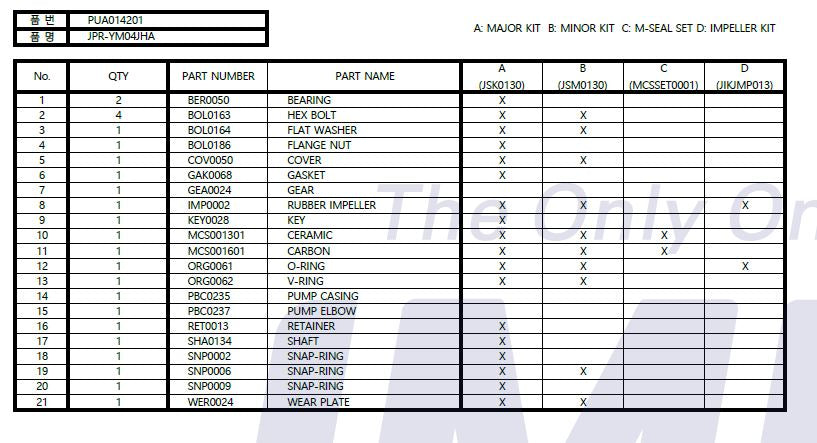

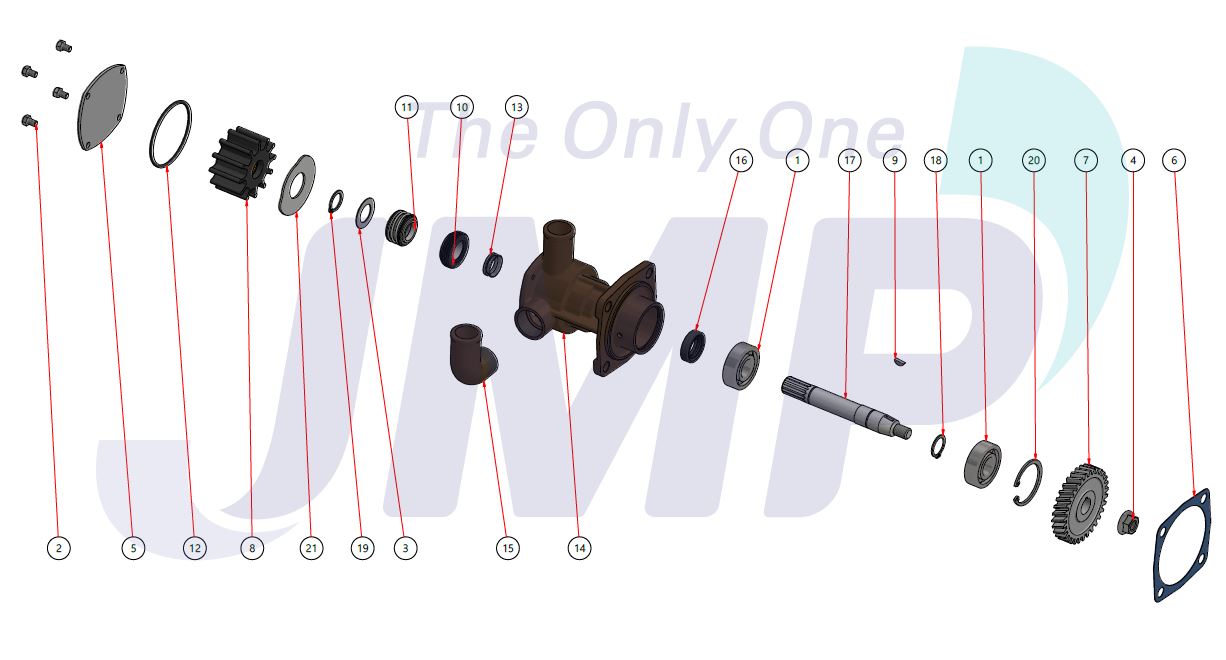

Pos
Description
Yanmar Number
Johnson Number		 Included
Minor
Kit		 Included
Major
Kit		 JMP
Number
Seawater Pump 129670-42513 10-13328-04 JPR-YM04JHA
21 Minor Kit JSM0130
22 Major Kit ✔ JSK0130
1 Bearing X0508129 0.3431.483 ✔ BER0050
2 Hex screw, End Cover 129271-42510 0.0138.987 ✔ ✔ BOL0163
3 Flat washer 129670-42550 01-45680 ✔ ✔ BOL0164
4 Flange nut X0505526 0.0190.001 ✔ BOL0186
5 End Cover 129670-42520 01-46535 ✔ COV0050
6 Gear 129670-42700 19-12967042700 GEA0024
7 Impeller 129670-42531 08-1027B ✔ ✔ (with ORG0061) 7100-01
8 Key 129670-42580 0.0503.010 KEY0028
9 Ceramic N/A MCS001301
10 Carbon N/A ✔ MCS001601
10-1 Mechanical Seal Set (MCS001301,MCS001601) 129670-42560 0.2247.050 ✔ ✔ MCSSET0001
11 O-ring, End Cover 119773-42570 0.2173.475 ✔ ✔ ORG0061
12 O-ring (V-ring_Slinger) 120650-42420 0.2230.015 ✔ ORG0062
13 Pump body N/A 01-24639-1 PBC0235
14 HOSE ELBOW X01357681 01-35768-1 ✔ PBC0237
15 Retainer X0529105 0.2233.001 ✔ RET0013
16 Shaft X0146531 01-46531 ✔ SHA0134
17 Snap-ring 120650-42380 0.0370.017 ✔ SNP0002
18 Snap-ring 129670-42570 0.0370.516 ✔ ✔ SNP0006
19 Snap-ring 120650-42350 0.0371.040 ✔ SNP0009
20 Wear Plate 129670-42540 0.0371.040 ✔ ✔ WER0024
