Yanmar 6LP/ 6LPA-STP2 Seawater Pump with Ports 119773-42502 Replacement JPR-YM06LP(A)

Yanmar 6LP/ 6LPA-STP2 Seawater Pump with Ports 119773-42502 Replacement JPR-YM06LP(A)

Regular price $1,320.00 AUD
Regular price Sale price $1,320.00 AUD
Sale Sold out
Shipping calculated at checkout.
Yanmar 6LP/ 6LPA-STP2 Seawater Pump with ports 119773-42502 Replacement

Replaces Yanmar 119773-42502 / 119773-42501 / 119773-42500 / 119773-42650 (DTZE / STZE models need to use old ports with gasket 119787-42570).

Replaces Johnson 10-24493-01

Please note -  this pump is supplied with the intake & outlet Port Housing. For the pump without the port housing, use JMP JPR - YM06LP (B).

Includes gear and mounting o-ring similar to Yanmar 24321-000650

This is a non-OEM, aftermarket part JMP JPR - YM06LP (A).

All parts are interchangeable with Yanmar.

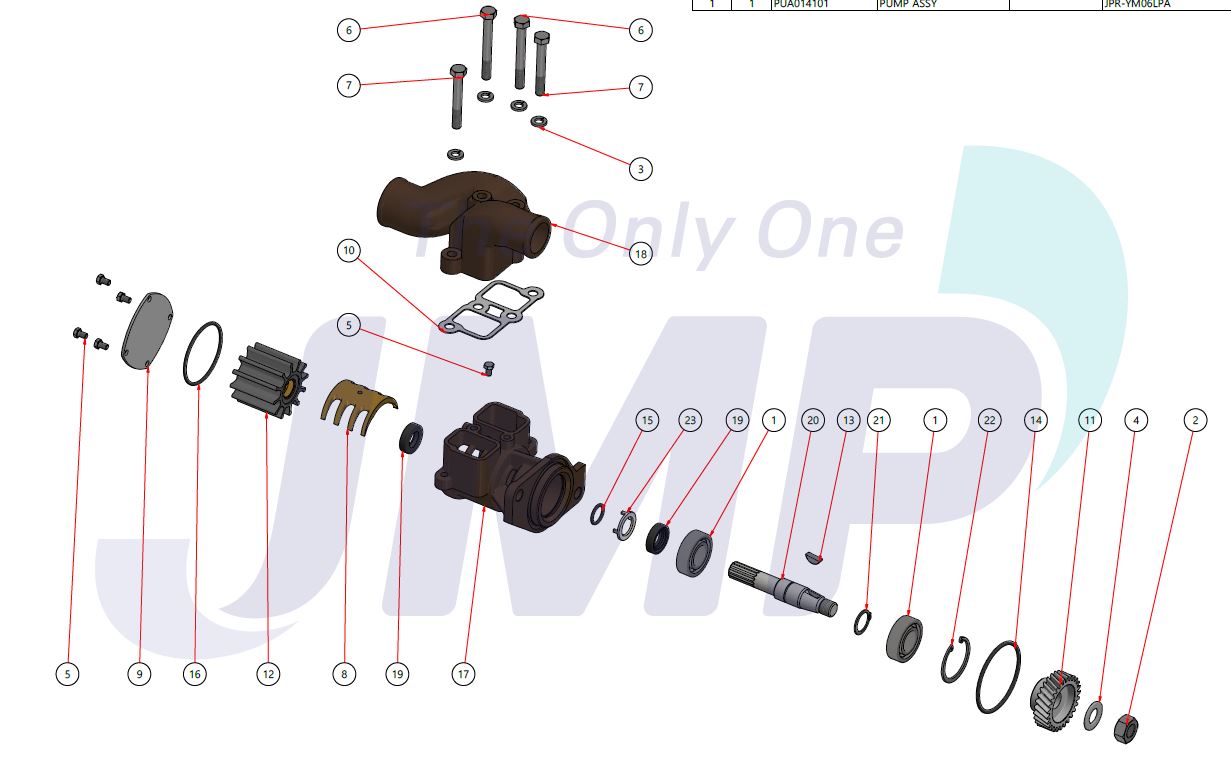

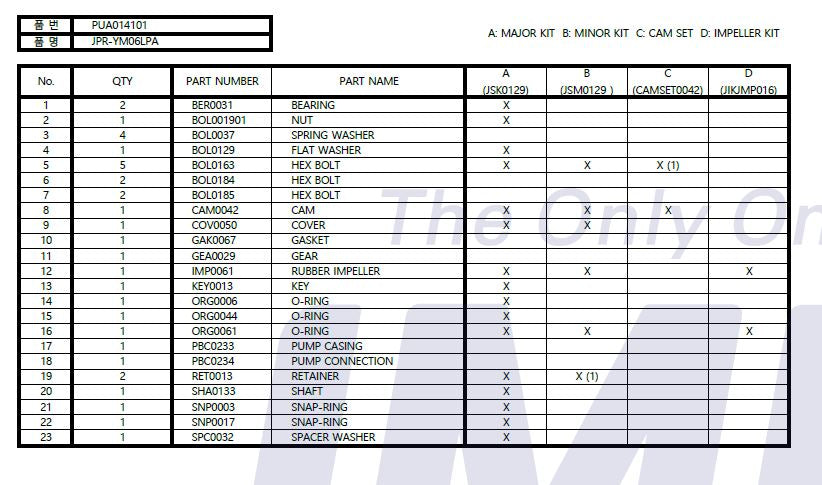

Pos Description Yanmar Number Johnson Number Included
Minor Kit
Included
Major Kit
JMP
Number
Seawater Pump 119773-42502 10-24493-02 JPR-YM06LPA
24 Minor Kit N/A JSM0129
25 Major Kit N/A JSK0129
1 Bearing X0508511 0.3431.444 BER0031
2 Nut, Gear 26736-140002 BOL001901
3 Spring washer x0502101000 0.0353.309 BOL0037
4 Washer, Gear 22117-140000 BOL0129
5 Hex screw, Cam x0504174000(Cam) 0.0279.033 BOL0163
5-1 Hex screw, End Cover 119175-42620(Cover) 0.0141.502 BOL0163
6 Hex bolt X0504527000 0.0142.602 BOL0184
7 Hex bolt X0504527 0.0142.601 BOL0185
8 Cam X0146502000 01-46502 CAM0042
8-1 Cam Set (CAM0042, BOL0163) N/A CAMSET0042
9 End Cover 129670-42520 01-46535 COV0050
10 Gasket 119787-42570 119787-42570 GAK0067
11 Gear 119773-42520 GEA0029
12 Impeller 119773-42600 08-812B 7136-01
10 Woodruff Key, Gear 22522-050160 KEY0013
14 O-ring (Mounting) 24321-000650 ORG0006
15 O-ring (Slinger) X0506501 0.2173.402 ORG0044
16 O-ring (End Cover) 119773-42570 0.2173.475 ORG0061
17 Body, Sea Water Pump N/A 01-24491-1 PBC0233
18 Pump connection 119773-42550 01-24492-1 PBC0234
19 Retainer X0529105 0.2233.001 RET0013
20 Shaft X0146268000 01-46268-2 SHA0133
21 Snap-ring X0534107000 0.0370.020 SNP0003
22 Snap-ring X0534507000 0.0371.042 SNP0017
