Yanmar 6LY2 (A)-ST(P),UTP Seawater Pump 119574-42502 Replacement

Yanmar 6LY2 (A)-ST(P),UTP Seawater Pump 119574-42502 Replacement

$1,650.00 AUD
$1,650.00 AUD
Sale Sold out
Shipping calculated at checkout.
Yanmar 6LY2 (A)-ST(P),UTP Seawater Pump Replacement

Replaces Yanmar 119574-42501 & Yanmar 119574-42500

Replaces Johnson 10-13170-01.

This is an a non-OEM, aftermarket part JMP JPR - YM06LY2.

All parts are interchangeable with Yanmar.

For minor Service Kit, use JSM0128

For major Service Kit, use JSK0128.

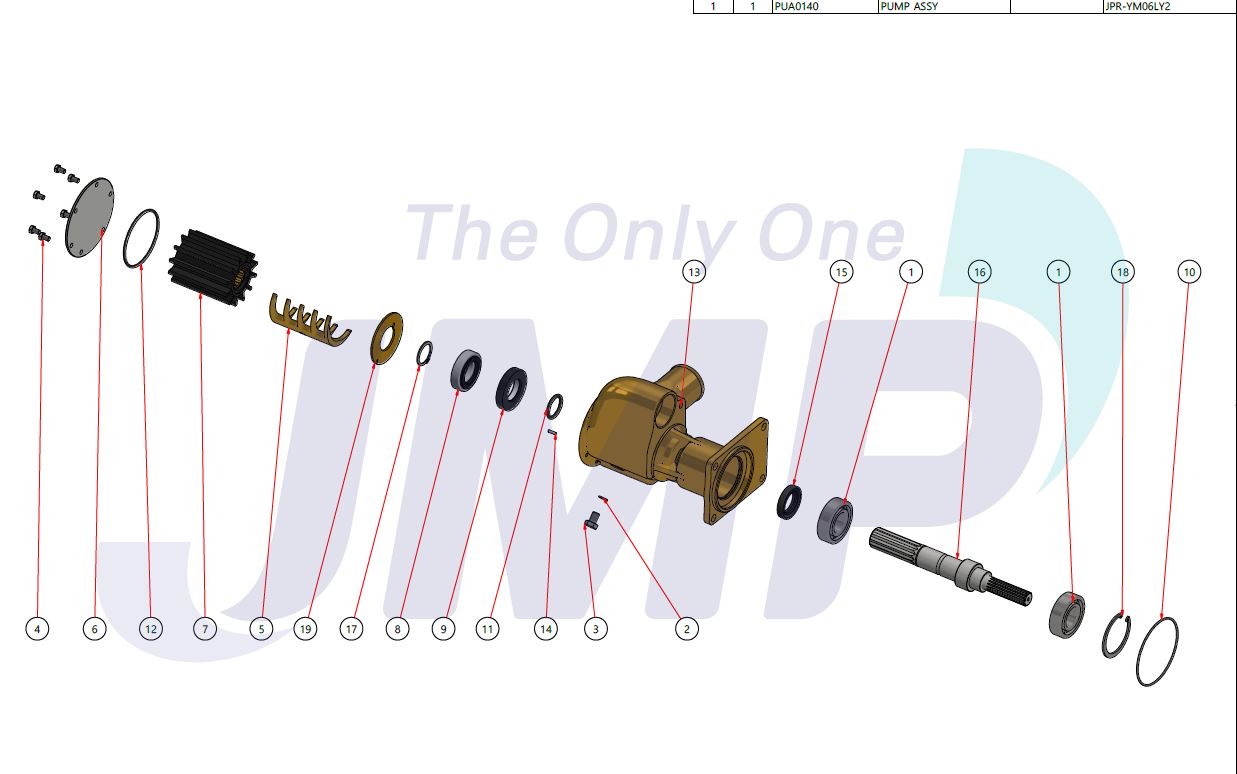

Pos
Description
Yanmar Number
Johnson Number		 Included
Minor
Kit		 Included
Major
Kit		 JMP
Number
Seawater Pump 119574-42502 JPR-Y06LY2
20 Minor Kit JSM0128
21 Major Kit JSK0128
1 Bearing 119578-42660 0.3431.485 ✔ BER0004
2 Washer, Cam 119578-42700 01-46790-02 BOL0031
3 Hex bolt, Cam 119578-42720 01-46794-12 BOL0137
4 Hex screw 119175-42620 0.0141.502 ✔ ✔ BOL0163
5 Cam 119578-42610 01-46146 CAM0041
5-1 Cam Set N/A ✔ ✔ CAMSET0041
6 End Cover 119574-42560 01-46285 ✔ ✔ COV0055
7 Impeller 119574-42550 08-821B ✔ ✔ 7376-01
8 CARBON / MCSSET0021 N/A MCS0042
9 CERIMIS / MCSSET0021 N/A MCS0043
9-1 Mechanical Seal Set 119578-42600 0.2247.008 ✔ ✔ MCSSET0021
10 O-ring (Mounting) 24341-000800 ORG0014
11 O-ring (Slinger) 119578-42640 0.2172.573 ✔ ✔ ORG0074
12 O-ring (End Cover) 119574-42570 0.2173.493 ✔ ORG0075
13 Body, Sea Water Pump N/A PBC0228
14 Pin 119578-42630 01-42400 ✔ PIN0001
15 Retainer 119578-42650 0.2233.008 ✔ RET0053
16 Shaft X0135771 01-35771 ✔ SHA0130
17 Snap-ring 119578-42670 0.0370.525 ✔ ✔ SNP0008
18 Snap-ring 119578-42680 0.0371.052 ✔ SNP0011
19 Wearplate 119578-42620 01-42443 ✔ ✔ WER0001
